Base bottom roller system Deeply Move, wood

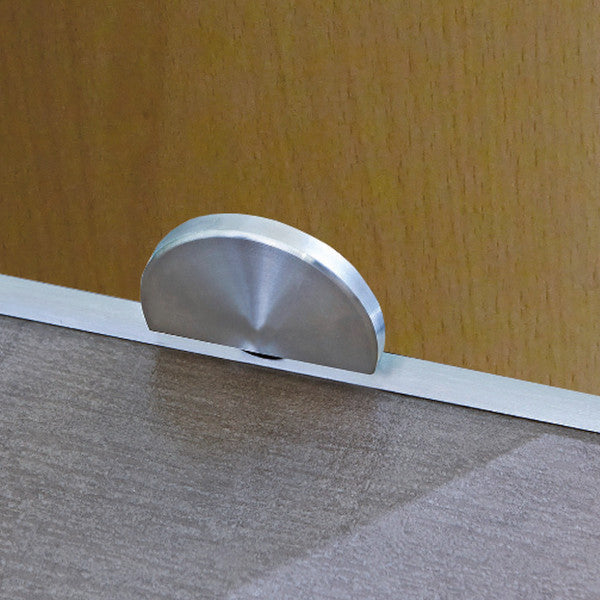

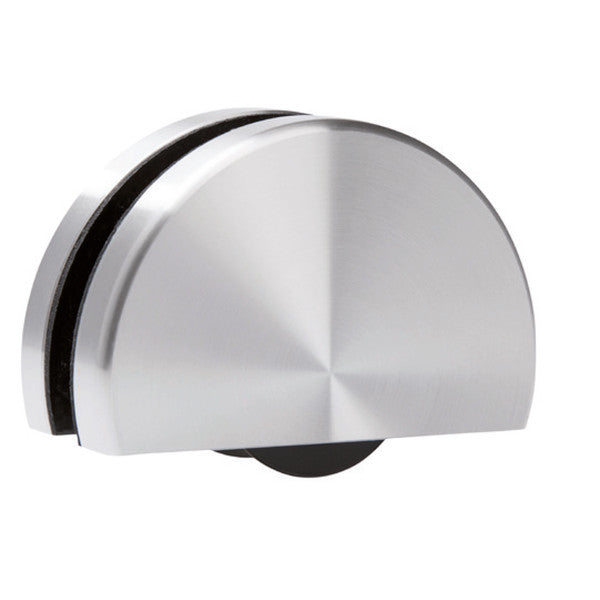

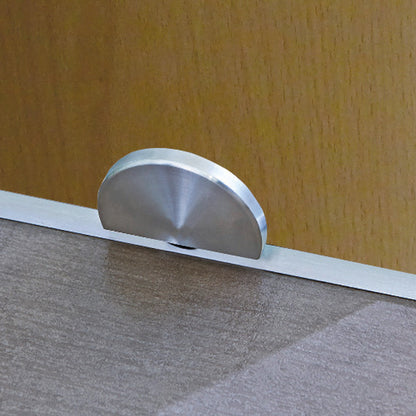

The Deeply Move base bottom roller system for wooden doors is a floor-mounted sliding door solution with a compact, semi-circular roller design – ideal for minimalist interiors where a discreet floor guide is essential. The system is designed for walls with insufficient load-bearing capacity and provides smooth, quiet operation with minimal initial friction.

Made from satin stainless steel (AISI 304L), the Deeply Move base bottom roller system is ANSI/BHMA A156.14-2013 certified (Grade 1) and supports wooden door weights of up to 176 lbs (80 kg). It includes a bottom rail undrilled for glueing and an aluminium ceiling guide rail with stainless steel appearance. Available in four passage widths from 29-1/2" to 49-3/16", suitable for single wooden doors with a thickness of 1-1/2" to 1-3/4".

Ideal for residential interiors and design-focused projects with wooden sliding doors.

1 5

Surface Satin stainless steel

Passage width 29-1/2" - 35-7/16" (750-900mm) 35-13/16" - 39-3/8" (910-1000mm) 39-3/4" - 44-1/16" (1010-1120mm) 44-1/2" - 49-3/16" (1130-1250mm)

Number of door leaves 1

SKU:

SKU:112.00140

$1,288.00 USD

Sale Sold out

Shipping calculated at checkout.

View full details

Product Information

Features
Single Door Sets
For walls w/o enough carrying capacitiy
Material: bottom rail + rollers, stainless steel (AISI304L)
Ceiling guiderail aluminium (stainless steel optic)
Finish options: satin stainless steel
Benefits
ANSI/BHMA A156.14-2013 tested and certified
Grade 1
Wood door thickness: 1 1/2“-1 3/4“
Adjustable height + 3/64” / 5/64” / 1/8”
Initial friction < 10 NM
Maximum door weight: 176 lbs (80 kg)
Scope of Delivery
1 bottom rail undrilled for glueing
1 ceiling guiderail
2 base bottom rollers
2 doorstoppers
installation screws

Technical Details

Area of application: Wooden doors
Assembly: Wall mounting
Classification: | - | 6 | 3 | 0 | - | 4 | - | 1 | 3 |
Door leaf thickness: 1-4/8" - 1-6/8" (38-45mm)
Floor roller and track profile material: Stainless steel (1.4305) Fine grinding
Guide profile material: Aluminium, stainless steel look
Initial friction: < 10NM
Number of door leaves: 1
Passage width, max.: 35-3/8" (900mm)
Passage width, min.: 29-4/8" (750mm)
Special feature: ideal for walls with insufficient load-bearing capacity
Standard: certified according to EN 1527:2013, ift Rosenheim
Suitable for door width max.: 37-3/8" (950mm)
Suitable for door width min.: 31-4/8" (800mm)
