Base bottom roller system Silent Glam, wood

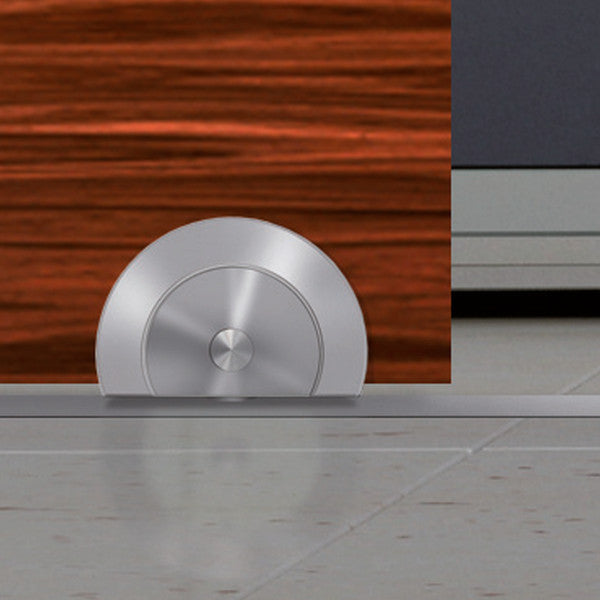

The Silent Glam base bottom roller system for wooden doors is a floor-mounted sliding door solution designed for installations where wall mounting is not possible due to insufficient load-bearing capacity. The system includes a bottom rail with integrated base rollers and an aluminium ceiling guide rail with stainless steel appearance, providing smooth and quiet operation with minimal initial friction.

Made from satin stainless steel (AISI 304L), the Silent Glam base bottom roller system is ANSI/BHMA A156.14-2013 certified (Grade 1) and supports wooden door weights of up to 330 lbs (145 kg). The patented continuous height adjustment of +1/4" ensures precise alignment during installation. Available in four passage widths from 29-1/2" to 49-3/16", suitable for single wooden doors with a thickness of 1-1/4" to 1-3/4".

Ideal for residential and commercial interiors with wooden sliding doors.

1 5

Surface Satin stainless steel

Passage width 29-1/2" - 35-7/16" (750-900mm) 35-13/16" - 39-3/8" (910-1000mm) 39-3/4" - 44-1/16" (1010-1120mm) 44-1/2" - 49-3/16" (1130-1250mm)

Number of door leaves 1

SKU:

SKU:112.00124

$1,897.00 USD

Sale Sold out

Shipping calculated at checkout.

View full details

Product Information

Features
Single Door Sets
For walls w/o enough carrying capacitiy
Patented continuous height adjustment
Material: bottom rail + rollers, stainless steel (AISI304L)
Ceiling guiderail aluminium (stainless steel optic)
Finish options: satin stainless steel
Benefits
ANSI/BHMA A156.14-2013 tested and certified
Grade 1
Wooden door thickness: 1 1/2“-1 3/4“
Adjustable height + 1/4”
Initial friction < 10 NM
Maximum door weight: 330 lbs (145 kg)
Design varieties through assortment of
diverse cover plates
Scope of Delivery
1 bottom rail, undrilled for glueing
1 ceiling guiderail

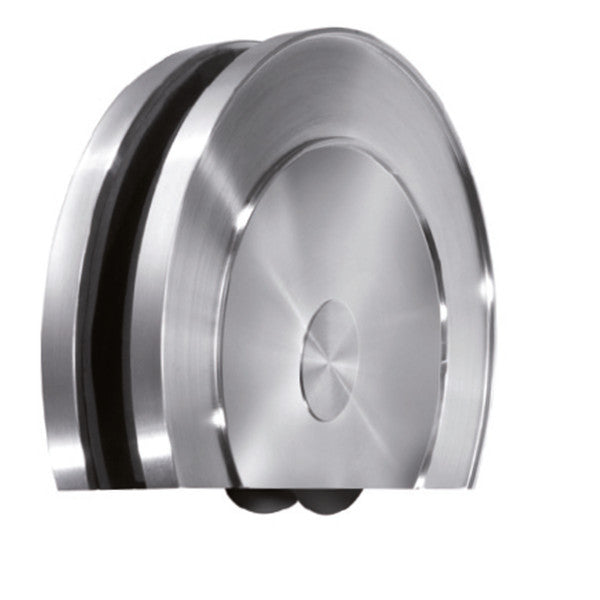

2 base bottom rollers
2 doorstoppers
installation screws

Technical Details

Area of application: Wooden doors
Assembly: Wall mounting
Classification: | - | 6 | 3 | 0 | - | 4 | - | 1 | 3 |
Door leaf thickness: 1-4/8" - 1-6/8" (38-45mm)
Floor roller and track profile material: Stainless steel (1.4305) Fine grinding
Guide profile material: Aluminium, stainless steel look
Initial friction: < 10NM
Number of door leaves: 1
Passage width, max.: 35-3/8" (900mm)
Passage width, min.: 29-4/8" (750mm)
Setting options: height adjustable +2/8" (6mm)
Special feature: ideal for walls with insufficient load-bearing capacity
Standard: certified according to EN 1527:2013, ift Rosenheim
Suitable for door width max.: 37-3/8" (950mm)
Suitable for door width min.: 31-4/8" (800mm)
