Beluga pull handle 13/16", solid, welded

The Beluga pull handle features a solid round bar with a diameter of 13/16" (20mm), welded construction, and a clean cylindrical profile. Made from satin stainless steel (AISI 304), it offers strong resistance to wear and corrosion – suitable for both glass and wooden doors.

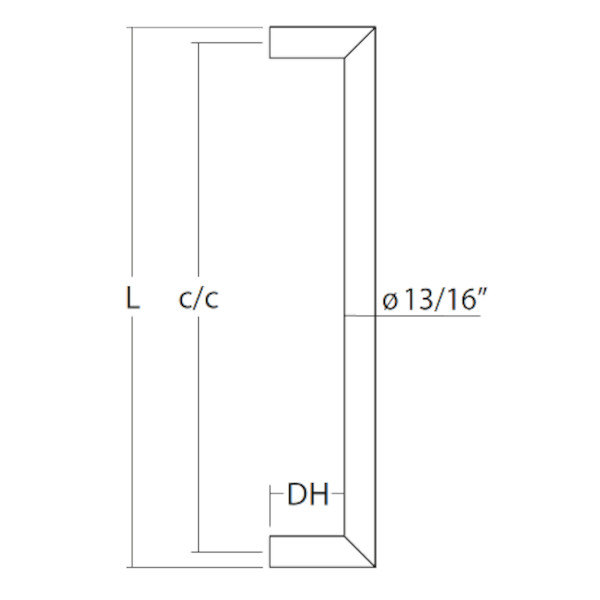

Handle bar ø 13/16" (20mm), solid, welded. Tubular thickness t = 5/64". Passage height 1-49/64". Glass drill holes ø 9/16", wood drill holes ø 1/2". Available in six center-to-center distances from 11-1/64" to 46-7/16", as a single handle or handle pair.

  • Pull handle Beluga in stainless steel with welded handle bar
1 2
Center to center distance
Door leaf
Product type/design

SKU:

SG300-20EF-SG

$263.00 USD
$263.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Information

  • Features

    handle bar ø 13/16“ (20mm), solid, welded
    passage height DH = 1 49/64“
    tubular thickness t = 5/64“, satin stainless steel (AISI 304)
    glass drill holes ø 9/16“, wood drill holes ø 1/2“
    for wooden doors

  • Benefits

  • Scope of Delivery

    Single handle: 1 pc.
    Handle pair: 1 pair

Technical Details

handle bar ø 13/16“ (20mm), solid, welded
length 11-13/16", c/c 11-1/64"
passage height DH = 1-49/64“
tubular thickness t = 5/64“, satin stainless steel (AISI 304)
glass drill holes ø 9/16“
for glass doors
single handle

Downloads

Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
