Bottom guide for wooden door panels

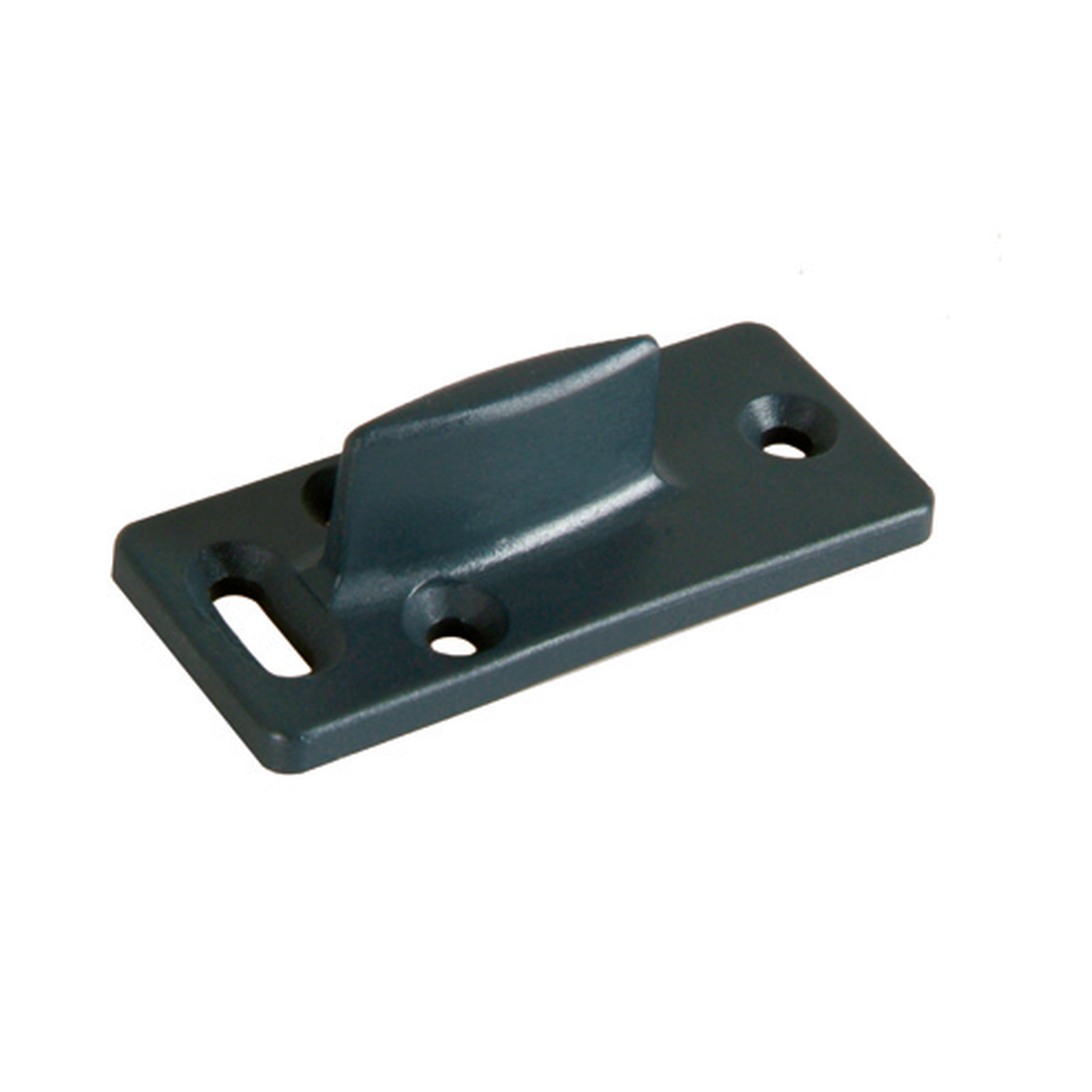

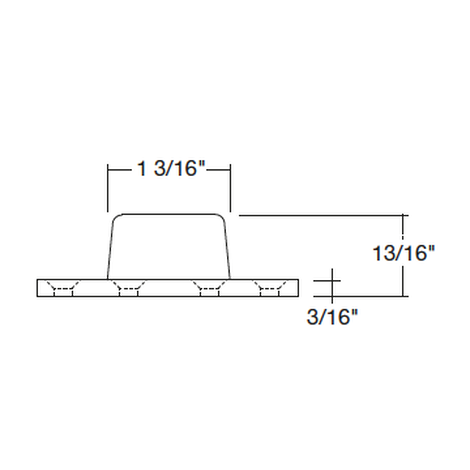

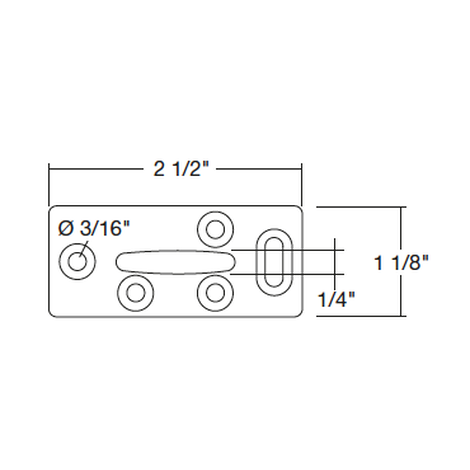

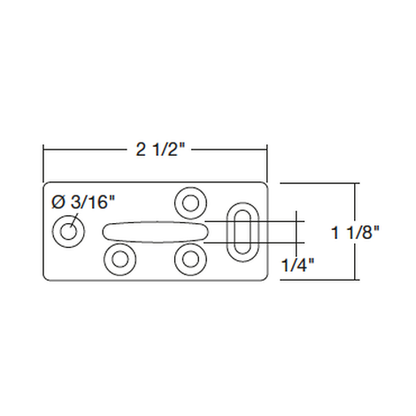

The bottom guide for wooden door panels keeps the barn door aligned and prevents lateral movement at the bottom edge during operation. The plastic guide fits into a panel channel of 5/16" x 11/16" (8 x 17 mm) routed into the bottom of the door panel and is suitable for door panel thicknesses up to 1 3/4" (44 mm). Dimensions: 2 1/2" x 1 3/16" x 13/16". Sold individually (1 pc.).

1 3

SKU:

USH268K

$30.00 USD
$30.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Information

  • Features

    for door panel thickness t up to 1 3/4"
    plastic
    panel channel for bottom guide 5/16" x 11/16"

  • Benefits

  • Scope of Delivery

    1 pc.

Technical Details

The bottom guide for wooden door panels keeps the barn door aligned and prevents lateral movement at the bottom edge during operation. The plastic guide fits into a panel channel of 5/16" x 11/16" (8 x 17 mm) routed into the bottom of the door panel and is suitable for door panel thicknesses up to 1 3/4" (44 mm). Dimensions: 2 1/2" x 1 3/16" x 13/16". Sold individually (1 pc.).

Downloads

Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
