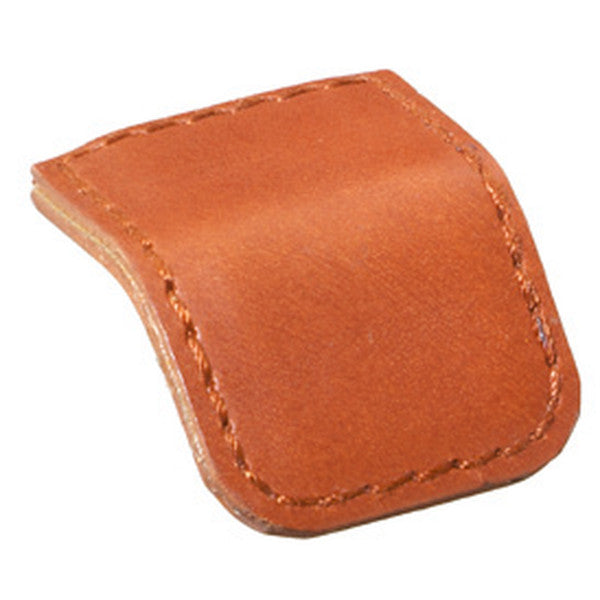

The Cippus wing handle is a top-mounted leather furniture handle made from a metal sheet covered with thick stitched leather. The wing-shaped profile is fixed to the top edge of cabinet doors or drawers using wood screws, with a self-adhesive strap covering the mounting screws after installation for a clean finish. The overhang provides a comfortable finger grip without protruding from the front face of the furniture.

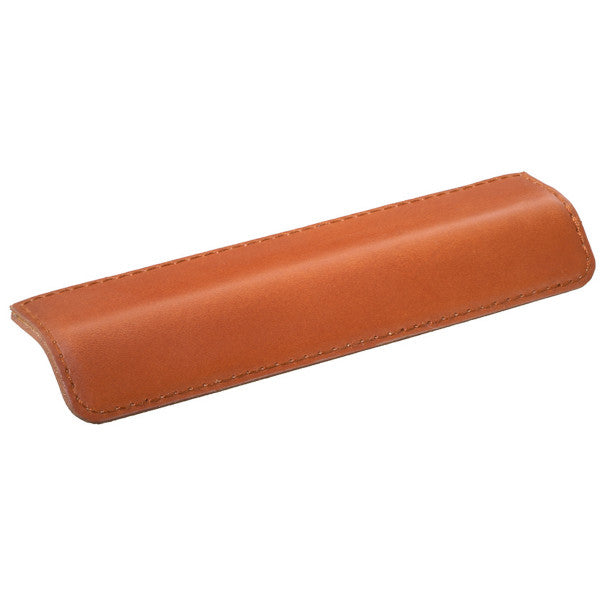

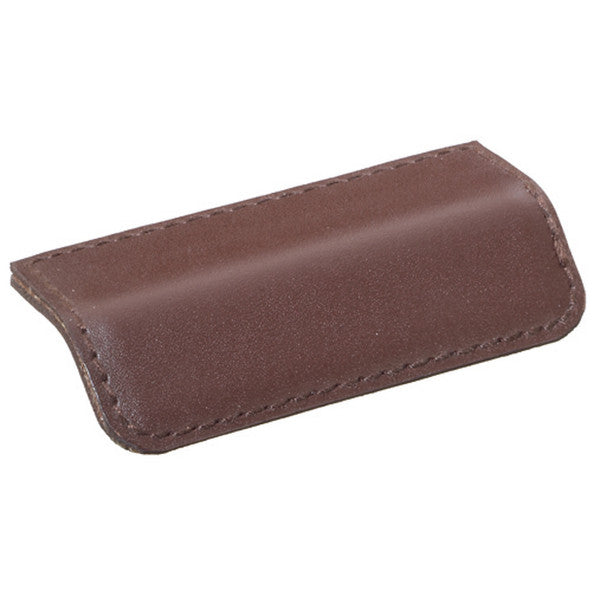

Metal sheet, covered with thick stitched leather. Top side mounting with wood screws, self-adhesive cover strap included. Overhang 1-7/16" (37mm), thickness 3/16" (4mm). Available in three lengths: 1-1/8" (28mm) with c/c 5/8" (16mm), 3" (76mm) with c/c 2-1/4" (57mm), and 5-1/2" (140mm) with c/c 4-3/4" (121mm). Leather: cognac or mocca. Sold individually.
handle covered with stitched thick leather
handle for top side mounting with wood screws
covering of the mounting screws after the mounting with self-gluing strap

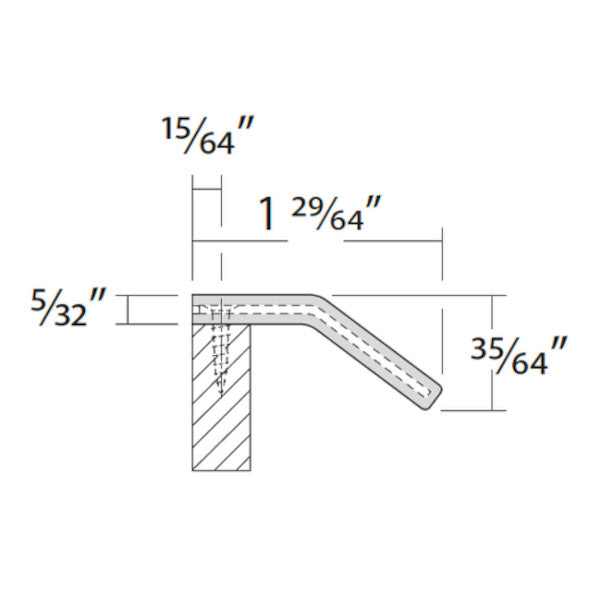

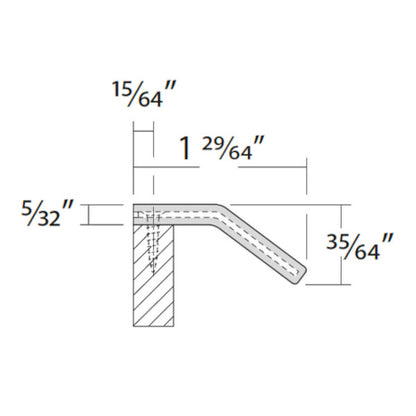

overhang 1-7/16" (37mm), thickness 3/16" (4mm)
metal sheet, covered with thick leather
Benefits
Scope of Delivery
1 pc.
Technical Details
The Cippus wing handle is a top-mounted leather furniture handle made from a metal sheet covered with thick stitched leather. The wing-shaped profile is fixed to the top edge of cabinet doors or drawers using wood screws, with a self-adhesive strap covering the mounting screws after installation for a clean finish. The overhang provides a comfortable finger grip without protruding from the front face of the furniture.
Metal sheet, covered with thick stitched leather. Top side mounting with wood screws, self-adhesive cover strap included. Overhang 1-7/16" (37mm), thickness 3/16" (4mm). Available in three lengths: 1-1/8" (28mm) with c/c 5/8" (16mm), 3" (76mm) with c/c 2-1/4" (57mm), and 5-1/2" (140mm) with c/c 4-3/4" (121mm). Leather: cognac or mocca. Sold individually.
Downloads
Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
