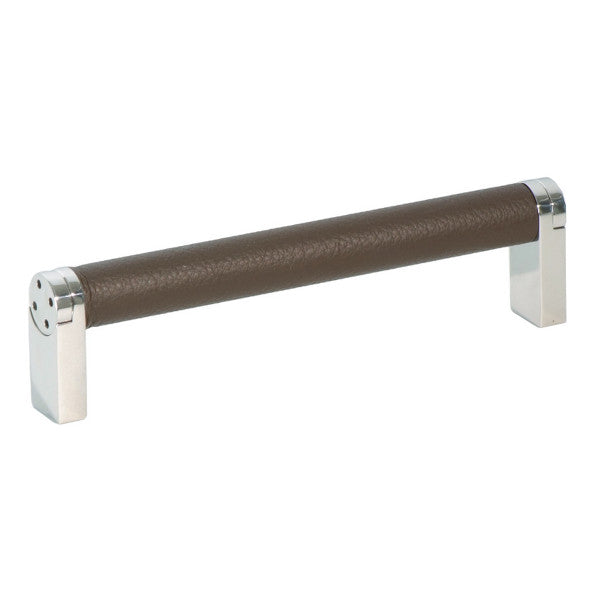

The Citus System handle covered with leather is a modular furniture handle combining a leather-covered handle bar with polished satin stainless steel bases (AISI 303). The smooth cocoa leather wrap and the visible polished base components create a refined contrast – well suited for high-end cabinet and furniture applications in residential and hospitality interiors.

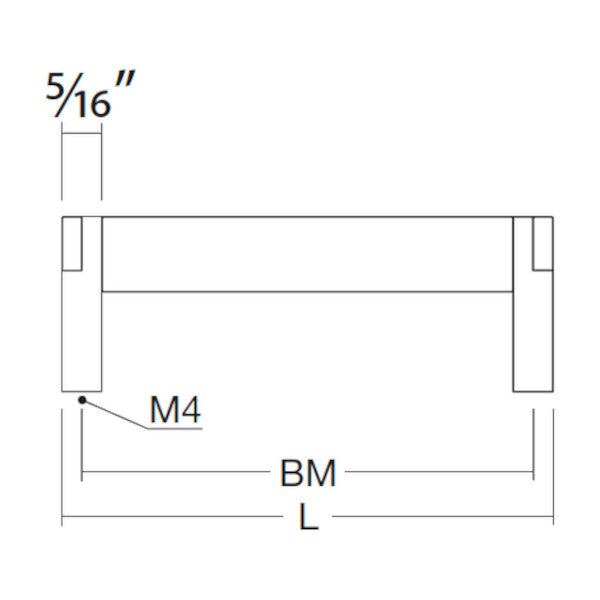

Handle bar ø 9/16" (15mm), height 1-3/8", M4 fixing. Base dimensions 1-3/8" x 9/16" x 1/8", secured with 2 decorative screws. Available in four lengths from 5-13/64" to 23" with corresponding center-to-center distances. Leather: cocoa, plain. Sold individually.
handle bar covered with leather, cocoa, plain
2 decor screws and 2 bases ( 9/16" x 7/64"( (15x8mm)
fix the handle bar ø 9/16" (15mm) height H = 1-3/8" (35mm) , M4
handle bar: satin stainless steel (AISI 303) or leather

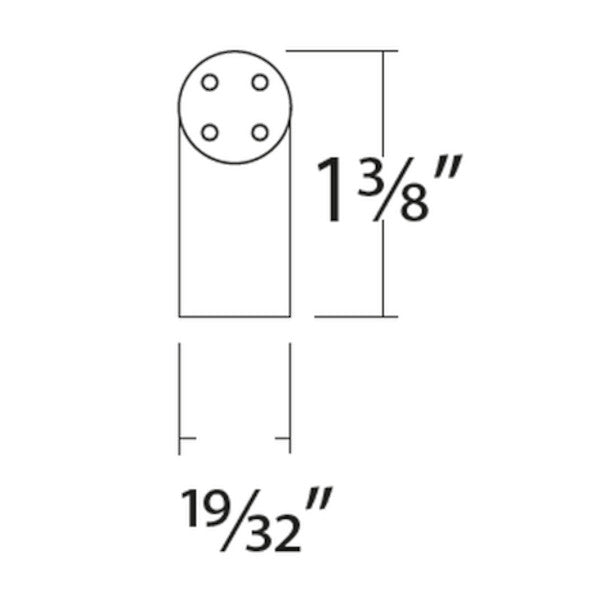

base: 1 3/8" x 9/16" x 1/8" (35x15x8mm), satin stainless steel (AISI 303)
Benefits
Scope of Delivery
1 pc.
Technical Details
Centre distance: 128mm Height: 35mm Leather: chocolate Length: 136mm Material: Stainless steel (1.4305) Metric thread: M4 Seam: smooth Series: Citus
Downloads
Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
