for door panel thickness t up to 13/4“

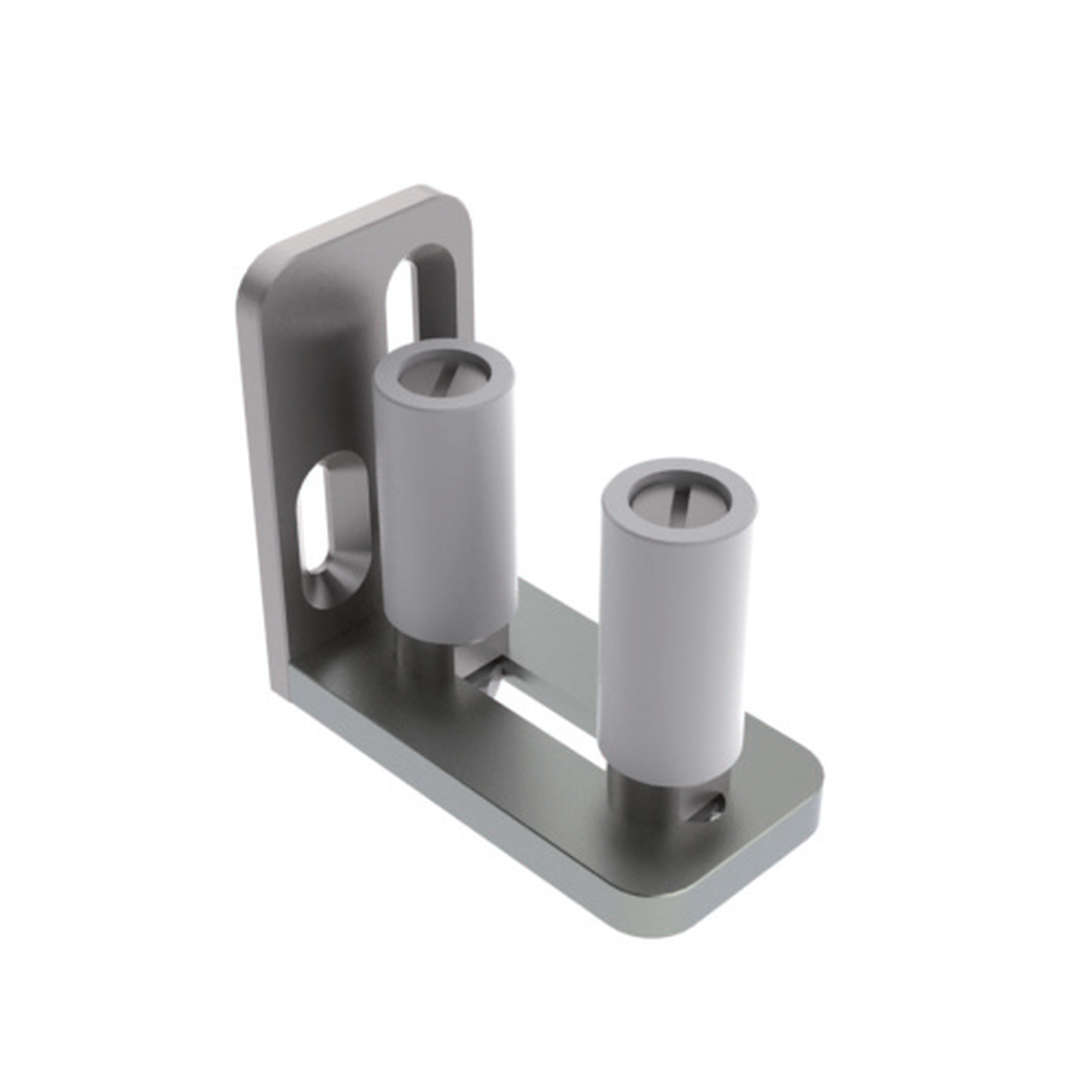

door guide for glass doors t = 5/16“ - 1/2“ (8mm - 12mm)
which mounts to wall above ground surface
extension: 2 23/64“ (60mm)
height adjustable ± 13/64“ (5mm)
satin stainless steel (AISI304L) / plastic
Benefits
Scope of Delivery
1 pc.
Technical Details
for door panel thickness t up to 13/4“ door guide for glass doors t = 5/16“ - 1/2“ (8mm - 12mm) which mounts to wall above ground surface extension: 2 23/64“ (60mm) height adjustable ± 13/64“ (5mm) satin stainless steel (AISI304L) / plastic
