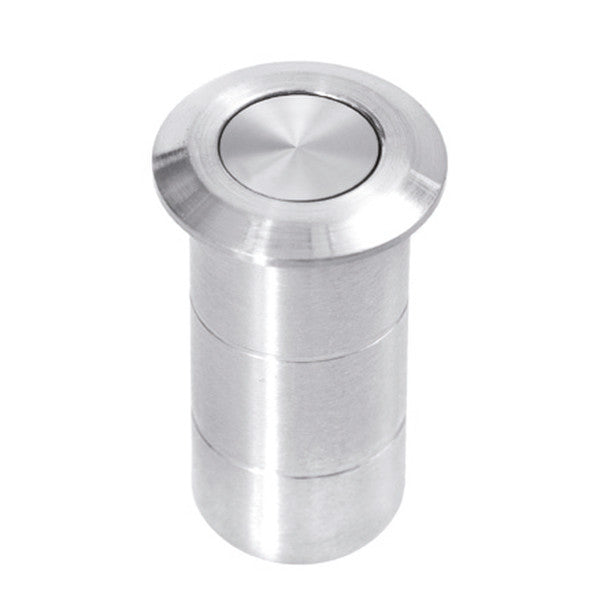

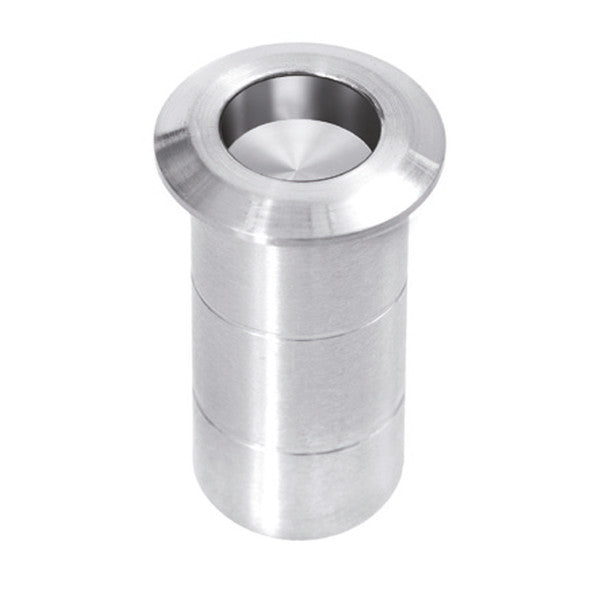

Dust proof strike for 1/2" bolt

The dust proof strike for 1/2" bolt is an optional floor-mounted strike plate for use with locking ladder pulls equipped with a 1/2" (12mm) floor bolt. The conical sleeve guides the bolt cleanly into the recess and prevents dirt and debris from accumulating in the floor cutout, maintaining reliable locking function over time.

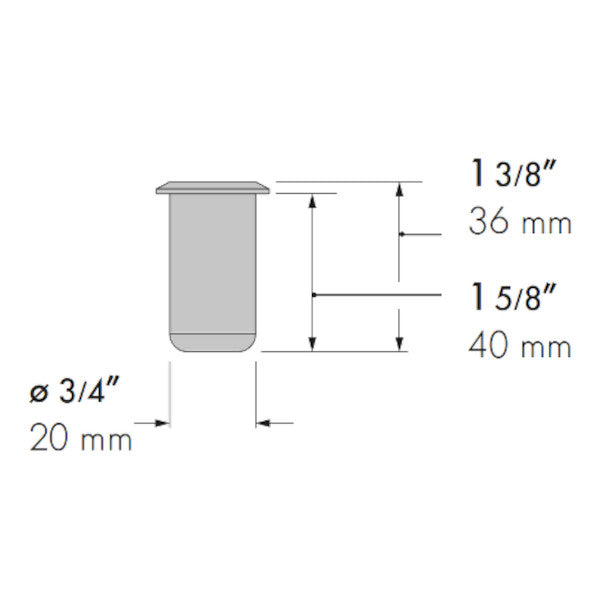

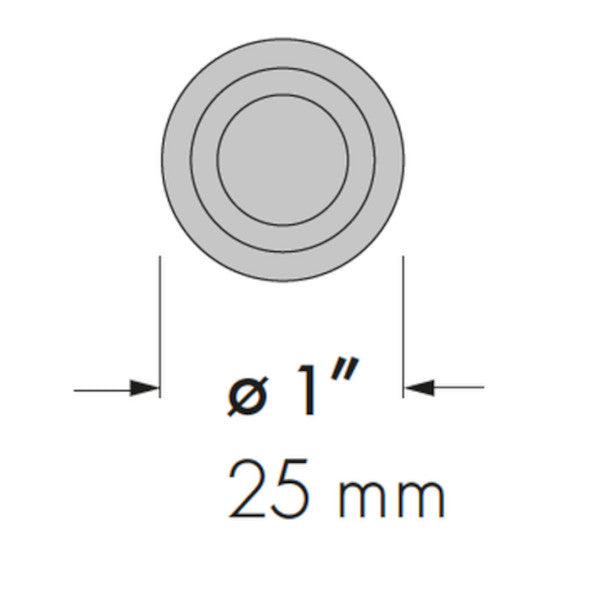

Made from nickel-plated steel. Dimensions: D = 1" (25mm), d = 1/2" (20mm), T = 1 5/8" (40mm). Required drill hole: ø 3/4" x 1 3/8" (20 x 36mm). The strike sits flush with the floor surface for a clean finish. Sold individually (1 pc.).

1 4

SKU:

143.00049

$21.00 USD
$21.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Information

  • Features

    useable only optional for locking ladder pull
    ⌀ 1", d 1/2", T 1 5/8"
    material: steel, nickel-plated

  • Benefits

  • Scope of Delivery

    1 pc.

Technical Details

The dust proof strike for 1/2" bolt is an optional floor-mounted strike plate for use with locking ladder pulls equipped with a 1/2" (12mm) floor bolt. The conical sleeve guides the bolt cleanly into the recess and prevents dirt and debris from accumulating in the floor cutout, maintaining reliable locking function over time.

Made from nickel-plated steel. Dimensions: D = 1" (25mm), d = 1/2" (20mm), T = 1 5/8" (40mm). Required drill hole: ø 3/4" x 1 3/8" (20 x 36mm). The strike sits flush with the floor surface for a clean finish. Sold individually (1 pc.).
