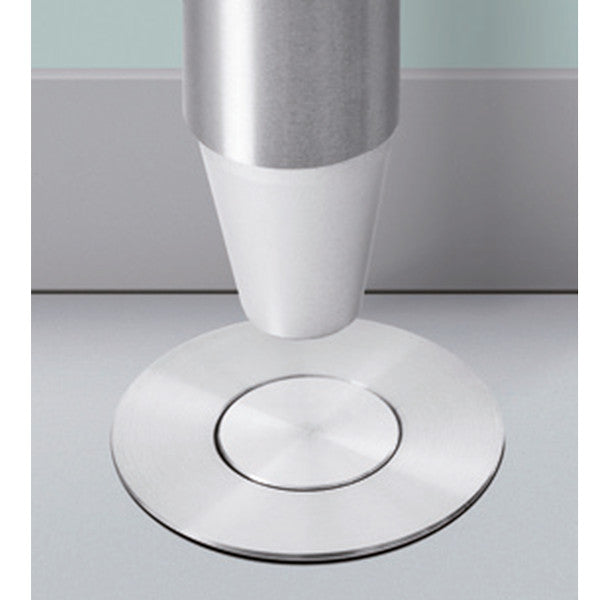

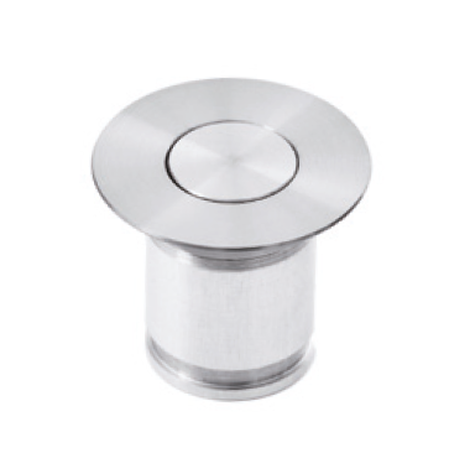

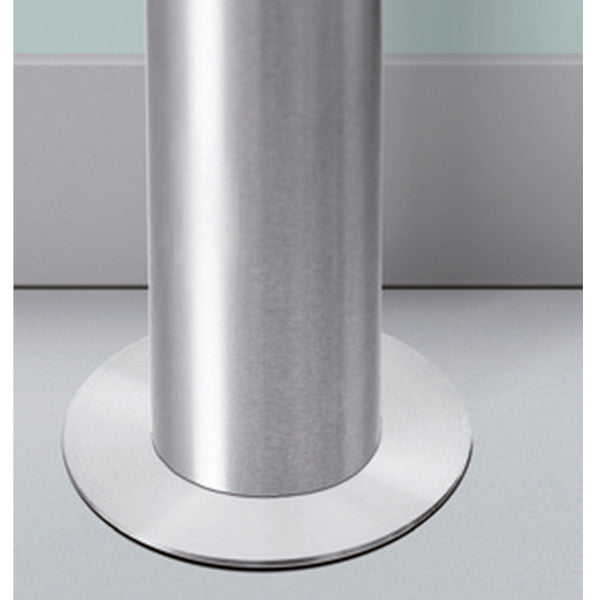

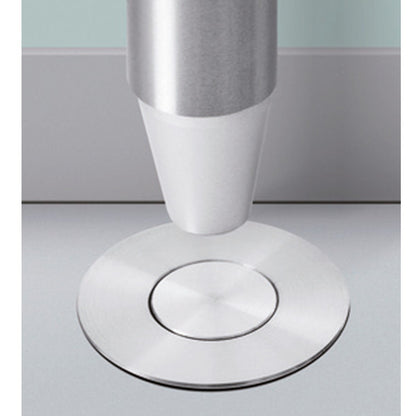

The dust proof strike for 7/8" bolt is a floor-mounted strike plate designed for use with locking ladder pulls equipped with a 7/8" (22mm) floor bolt. The conical sleeve guides the bolt cleanly into the strike and prevents dirt and debris from accumulating in the floor recess, ensuring reliable locking function over time.

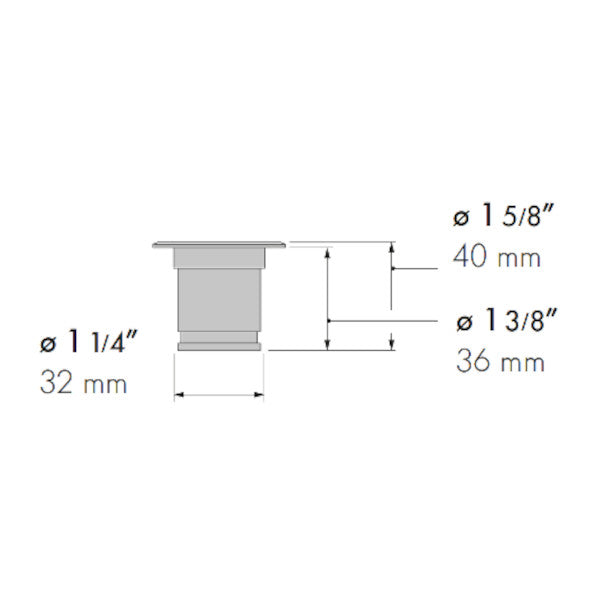

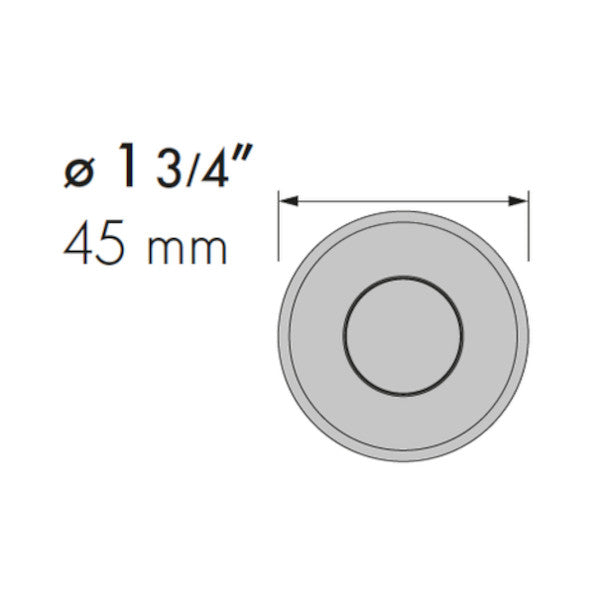

Made from satin stainless steel (AISI 303) with an aluminum insert. Dimensions: D = 1 3/4" (45mm), d = 1 1/4" (32mm), T = 1 5/8" (40mm). Required drill hole: ø 1 3/18" x 1 3/4" (36 x 45mm). The strike plate sits flush with the floor surface for a clean, unobtrusive finish. Available in three surface finishes: satin stainless steel, polished stainless steel, and stainless steel black coated. Sold individually (1 pc.).
The dust proof strike for 7/8" bolt is a floor-mounted strike plate designed for use with locking ladder pulls equipped with a 7/8" (22mm) floor bolt. The conical sleeve guides the bolt cleanly into the strike and prevents dirt and debris from accumulating in the floor recess, ensuring reliable locking function over time.
Made from satin stainless steel (AISI 303) with an aluminum insert. Dimensions: D = 1 3/4" (45mm), d = 1 1/4" (32mm), T = 1 5/8" (40mm). Required drill hole: ø 1 3/18" x 1 3/4" (36 x 45mm). The strike plate sits flush with the floor surface for a clean, unobtrusive finish. Available in three surface finishes: satin stainless steel, polished stainless steel, and stainless steel black coated. Sold individually (1 pc.).
