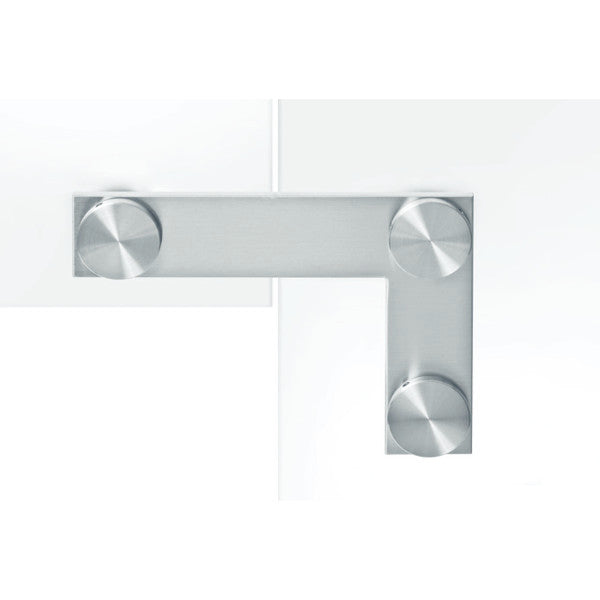

Flatec 3-hole connector skylight

The Flatec 3-hole connector for skylight is a stainless steel fitting designed for connecting glass panels in skylight and overhead constructions. The L-shaped profile provides a stable three-point connection while the one-sided adjustable distance (±1/8" / ±3mm) allows precise alignment during installation. The chamfered, framed edge and decorative caps give the connector a clean, minimalist appearance consistent with the Flatec system.

Satin stainless steel (AISI 303/304). Decorative caps ø 1-1/2" with 4 tightening holes. Glass thickness 5/16"–1/2" (8–13mm), glass protection set included. Material thickness t = 1/4". Plain profile 7-1/16" x 41-5/16" x 19/16". Glass drilling ø 23/32" + 1/64". Mounting with ø 5/32" cylinder bolt or hook wrench DIN 1816. Available as left-hand or right-hand item. Sold individually.

1 2
Projection

SKU:

USO275L-EF

$159.00 USD
$159.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Information

  • Features

  • Benefits

  • Scope of Delivery

    1 pc.

Technical Details

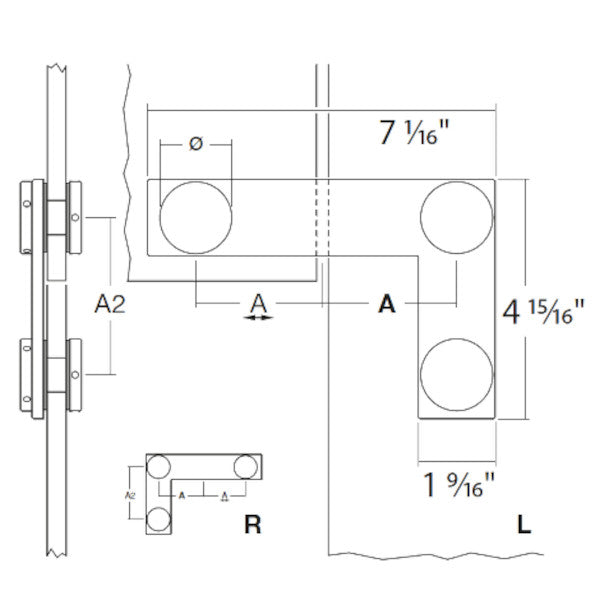

ø 1 1/2", glass thickness 5/6" - 1/2", A: 2 11/16", A2: 3 7/32"
plain profile 71/16" / 415/16" x19/16", chamfered framed edge (one-sided), left hand item)
material thickness t = 1/4"
decorative caps ø 1 1/2" with 4 tightening holes
glass thickness GS = 5/16" - 1/2", glass protection set
satin stainless steel (AISI 303/304)
distance A only one-sided ± 1/8" adjustable (for skylight), the other one and A2 are fixed
glass drilling ø 23/32" + 1/64"
mounting with ø 5/32" cylinder bolt or hook wrench-DIN 1816 (Art. No. Z924)
