Glass mount set, adjustable, countersunk

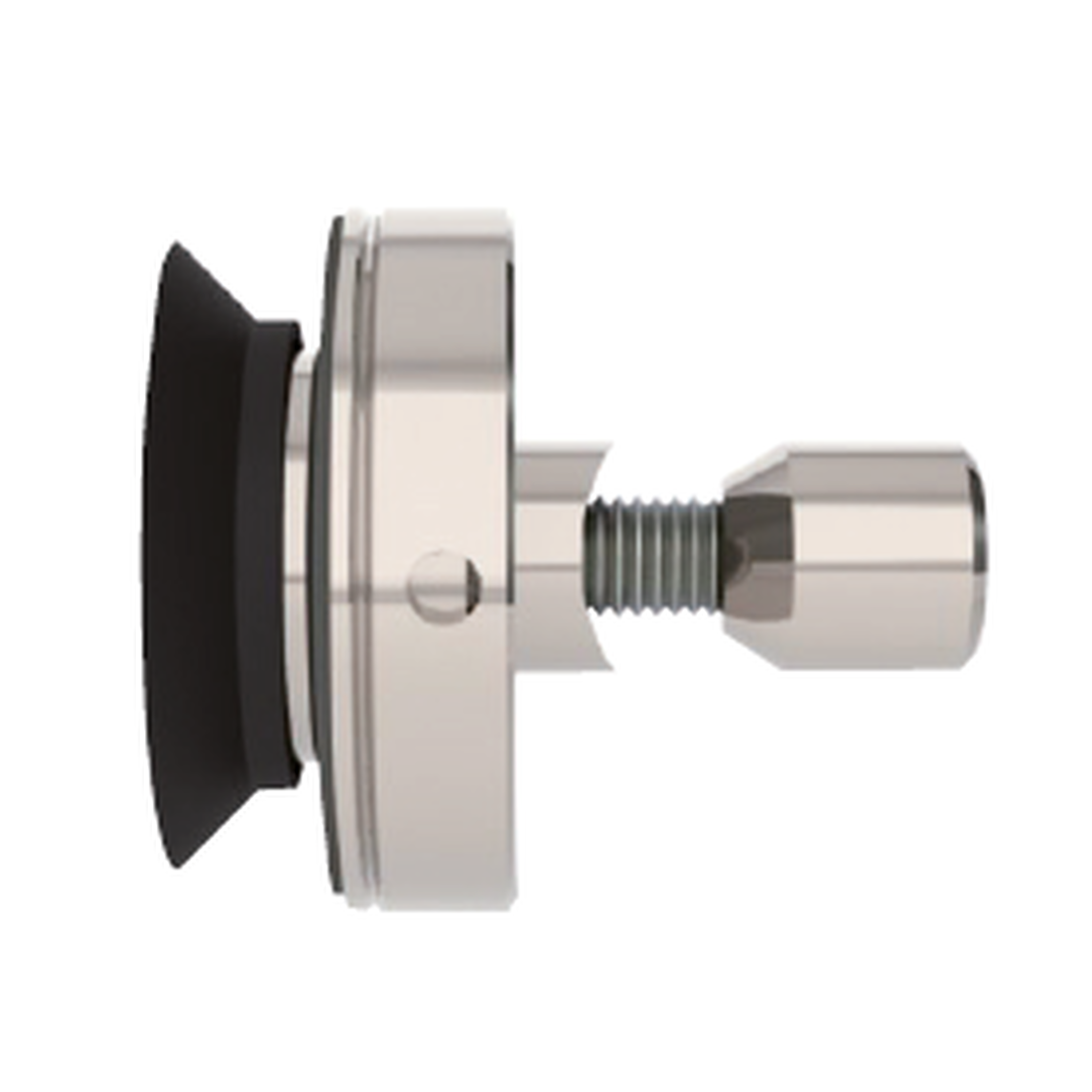

The glass mount set, adjustable, countersunk attaches glass sliding doors to the tubular track rail USO202EF with a flush countersunk fixing. The adjustable design allows height and side adjustment of ±3/16" (5mm) after installation – enabling precise alignment of the glass door panel.

Made from satin stainless steel (AISI 303). Compatible with glass door thicknesses of 5/16"–1/2" (8–12mm). Installation requires hook wrench Z931. Compatible with track rail USO202EF. Sold individually (1 pc.).

1 1

SKU:

110.00150

$117.00 USD
$117.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Information

  • Features

    for track rail (tubular) USO202EF
    height and side adjustable ± 3/16“ (5mm)
    for glass doors t = 5/16“-1/2“ (8-12mm)
    satin stainless steel (AISI 303)
    hook wrench Z931 is necessary

  • Benefits

  • Scope of Delivery

    1 pc.

Technical Details

The glass mount set, adjustable, countersunk attaches glass sliding doors to the tubular track rail USO202EF with a flush countersunk fixing. The adjustable design allows height and side adjustment of ±3/16" (5mm) after installation – enabling precise alignment of the glass door panel.

Made from satin stainless steel (AISI 303). Compatible with glass door thicknesses of 5/16"–1/2" (8–12mm). Installation requires hook wrench Z931. Compatible with track rail USO202EF. Sold individually (1 pc.).
