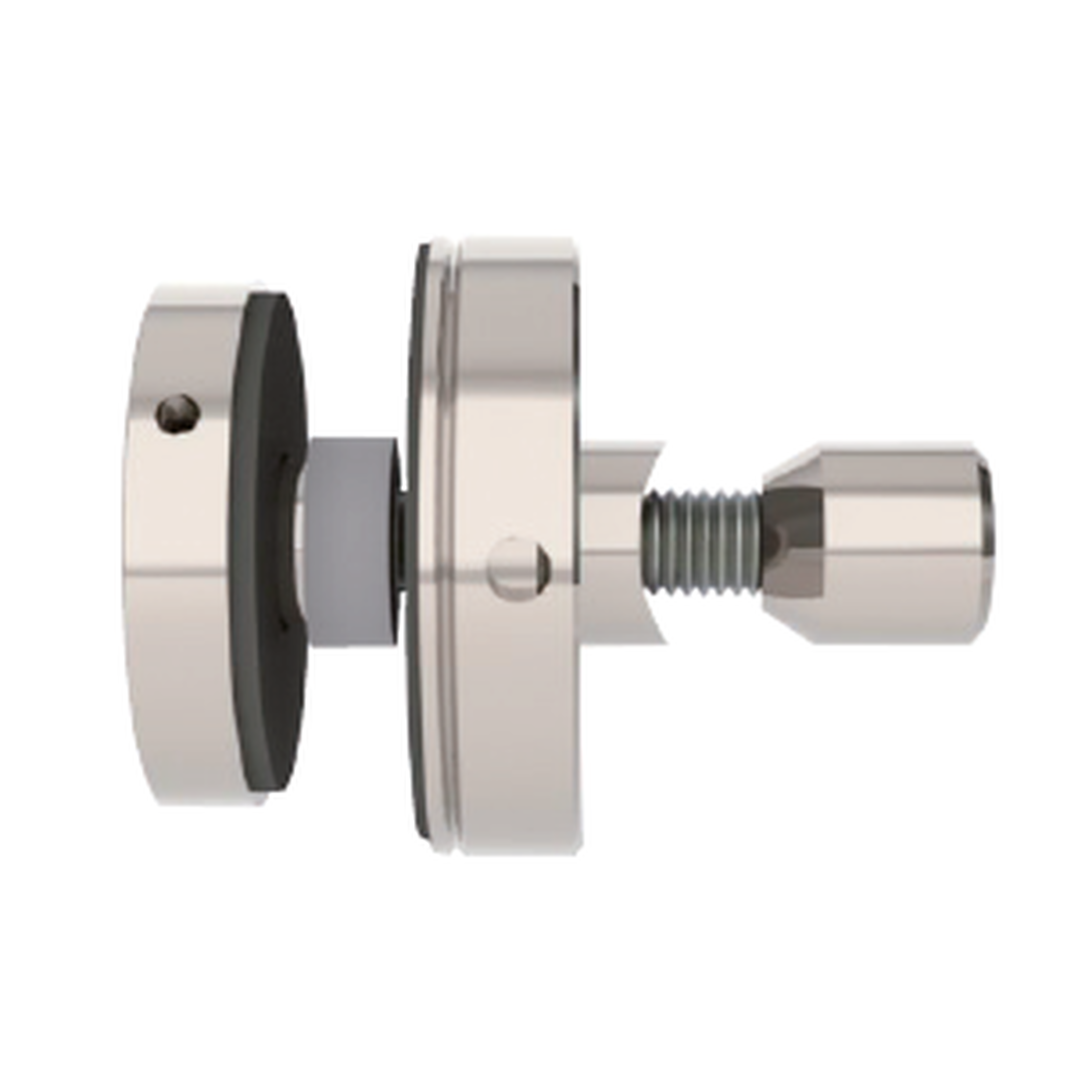

The glass mount set, adjustable attaches glass sliding doors to the tubular track rail USO202EF with a height and side adjustable fixing. The ±3/16" (5mm) adjustment range allows precise alignment of the glass door panel after installation.
Made from satin stainless steel (AISI 303). Compatible with glass door thicknesses of 5/16"–1/2" (8–12mm). Requires glass drill holes of ø 11/16" (17mm). Installation requires hook wrench Z931. Compatible with track rail USO202EF. Sold individually (1 pc.).
for track rail (tubular) USO202EF
height and side adjustable ± 3/16“ (5 mm)
for glass doors t = 5/16“-1/2“ (8mm - 12mm)
satin stainless steel (AISI 303)
glass drill holes: ø = 11/16“ (17mm)
hook wrench Z931 is necessary
Benefits
Scope of Delivery
1 pc.
Technical Details
The glass mount set, adjustable attaches glass sliding doors to the tubular track rail USO202EF with a height and side adjustable fixing. The ±3/16" (5mm) adjustment range allows precise alignment of the glass door panel after installation.
Made from satin stainless steel (AISI 303). Compatible with glass door thicknesses of 5/16"–1/2" (8–12mm). Requires glass drill holes of ø 11/16" (17mm). Installation requires hook wrench Z931. Compatible with track rail USO202EF. Sold individually (1 pc.).
