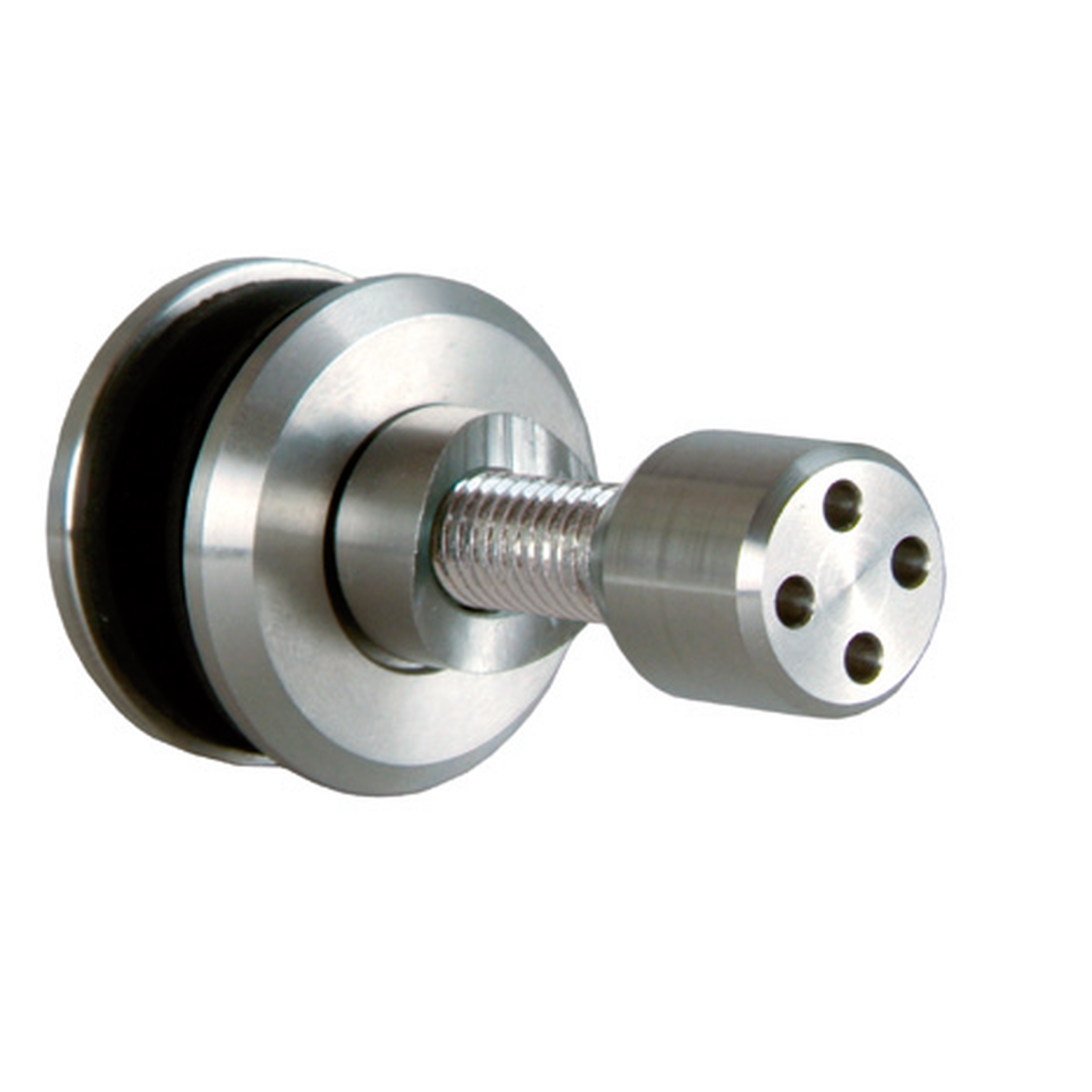

Glass mounting set for USO200EF

The glass mounting set for USO200EF is used to mount the barn door hardware track rail USO200EF directly onto a glass panel. The set includes a decorative screw with glass protection set for a secure, surface-friendly connection.

Compatible with glass doors of thickness 5/16" – 1/2" (8–12 mm). Decorative screw diameter ø 1 3/16" (30 mm), distance length 3/16" (5 mm). Glass drill holes required: ø 9/16" + 1/64" (14 mm + 0.3 mm). Overall width 1 1/16" (27 mm). Material: satin stainless steel (AISI 303). Sold individually (1 pc.).

1 1

SKU:

USO230-G

$116.00 USD
$116.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Information

  • Features

    for glass doors t= 5/16" - 1/2" (8-12mm), distance length 3/16" (5mm)
    decorative screw diameter 1 3/16"(30mm)
    for mounting the track rail USO200EF onto glass panel
    glass protection set
    satin stainless steel (AISI 303)
    glass drill holes ø 9/16“ + 1/64“

  • Benefits

  • Scope of Delivery

    1 pc.

Technical Details

The glass mounting set for USO200EF is used to mount the barn door hardware track rail USO200EF directly onto a glass panel. The set includes a decorative screw with glass protection set for a secure, surface-friendly connection.

Compatible with glass doors of thickness 5/16" – 1/2" (8–12 mm). Decorative screw diameter ø 1 3/16" (30 mm), distance length 3/16" (5 mm). Glass drill holes required: ø 9/16" + 1/64" (14 mm + 0.3 mm). Overall width 1 1/16" (27 mm). Material: satin stainless steel (AISI 303). Sold individually (1 pc.).

Downloads

Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
