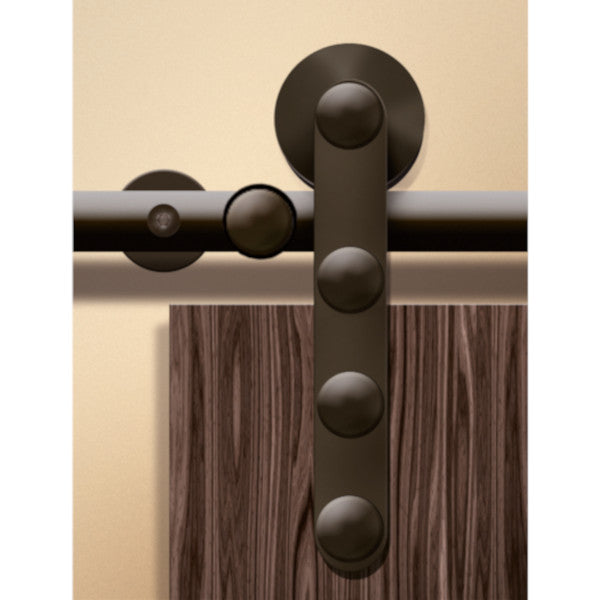

Sliding door hardware Antra I, wood

The Antra I barn door hardware for wooden doors features a clean, flowing design with a round track of 1" (25 mm) diameter and color-matched roller covers in dark bronze finish. The warm metallic brown tone sets it apart from standard stainless steel systems – ideal for refined residential and architectural interiors.

Made from stainless steel (AISI 304L) with heavy duty polymer rollers and an anti-jump device, the Antra I delivers smooth and quiet operation. Height adjustable wall mounts of ±1/8" ensure precise installation. Supports wooden door weights of up to 320 lbs (145 kg) with a door thickness of 1-7/16" to 1-3/4".

Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". ANSI/BHMA A156.14-2013 Grade 1 certified by Intertek.

1 5

Surface Satin stainless steel

Passage width 29-1/2" - 35-7/16" (750-900mm) 35-13/16" - 39-3/8" (910-1000mm) 39-3/4" - 44-1/16" (1010-1120mm) 44-1/2" - 49-3/16" (1130-1250mm) 59" - 70-7/8" (1500-1800mm) 79" - 94-1/2" (2000-2400mm)

Number of door leaves 1 2

SKU:

SKU:USU47.1-1800DB

$1,749.00 USD

Sale Sold out

Shipping calculated at checkout.

View full details

Product Information

Features
Single and biparting door sets
Anti-jump device
Made from stainless steel (AISI304L)
Heavy duty polymer roller
Finish options: dark bronze powdered
Benefits
ANSI/BHMA A156.14-2013 tested and certified grade 1 Intertek certification
Door thickness: 1 7/16“ - 1 3/4“
Initial friction < 10 NM
Maximum door weight: 320 lbs (145 kg)
Height adjustment ± 1/8”
Scope of Delivery
Single door:
1 track rail

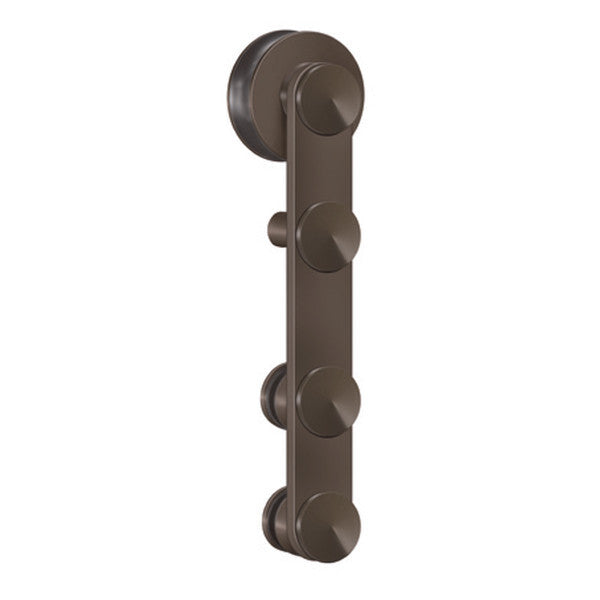

2 trolleys
3 (4) wall mounts
1 door bottom guide
2 door stoppers
hanger bolts

Biparting door:
2 track rails + connector
4 trolleys
7 (9) wall mounts
4 Doorstoppers
2 door bottom guides
hanger bolts

Technical Details

Area of application: Wooden doors
Assembly: Wall mounting
Classification: | - | 6 | 2 | 0 | - | 4 | - | 1 | 3 |
Door leaf thickness: 1-3/8" - 1-3/4" (36-45mm)
Door width: 31-4/5" - 37-3/8" (800-950mm)
Field of application: 1-leaf sliding doors
Passage width: 29-1/2" - 35-7/16" (750-900mm)
Series: Antra I
Setting options: height adjustable ± 1/8" (3mm)
Standard: Tested by Intertek according to ANSI/BHMA A156.14-2013

Downloads

Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
