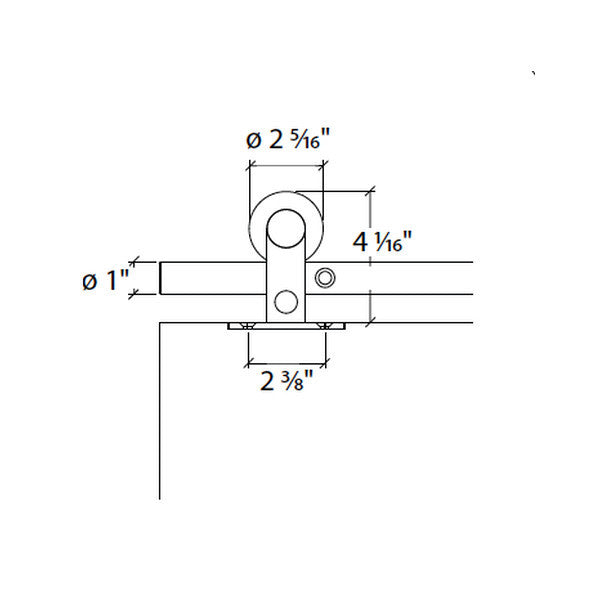

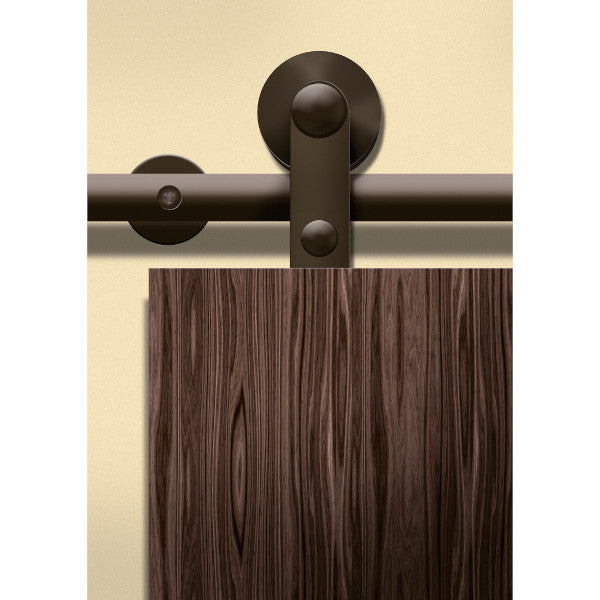

The Antra II barn door hardware for wooden doors features a clean, flowing design with a round track of 1" (25 mm) diameter and color-matched roller covers in dark bronze finish. The solid track rail ensures smooth and quiet operation – the warm metallic brown tone sets it apart from standard stainless steel systems, ideal for refined residential and architectural interiors.
Made from stainless steel (AISI 304L) with heavy duty polymer rollers and an anti-jump device, the Antra II supports wooden door weights of up to 320 lbs (145 kg) with a door thickness of 1-7/16" to 1-3/4".
Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". ANSI/BHMA A156.14-2013 Grade 1 certified by Intertek.
Single and biparting door sets
Anti-jump device
Solid track rail for smooth and quiet operation
Made from stainless steel (AISI304L)

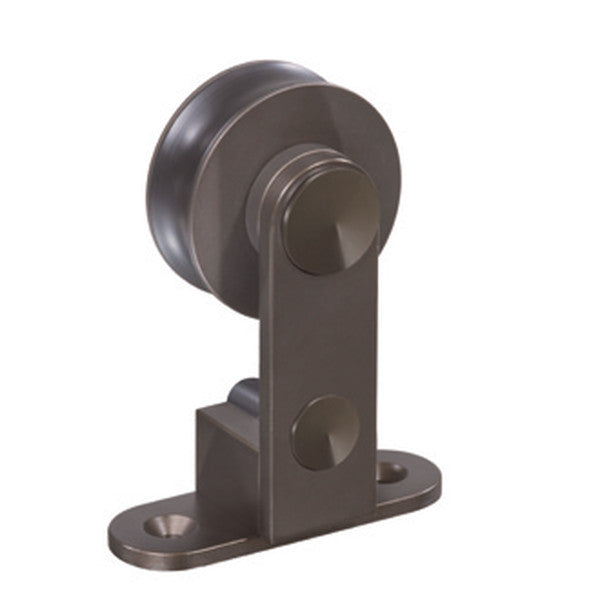

Heavy duty polymer roller
Finish options: dark bronze powdered
Benefits
ANSI/BHMA A156.14-2013 tested and certified grade 1 Intertek certification

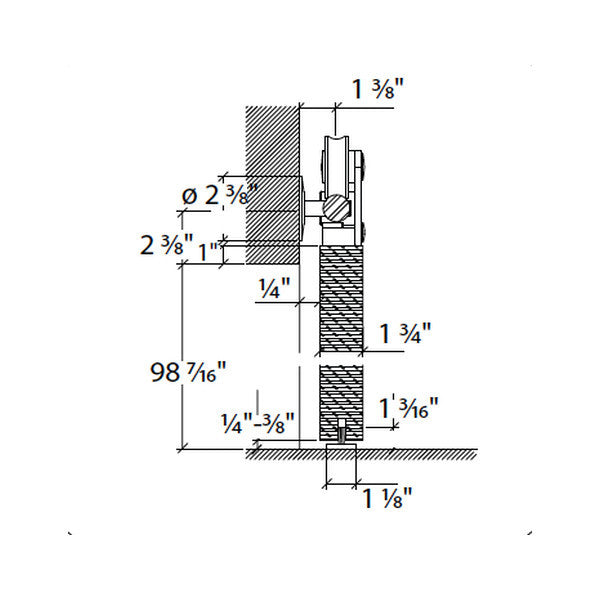

Door thickness: 1 7/16“ - 1 3/4“
Initial friction < 10 NM
Maximum door weight: 320 lbs (145 kg)
Scope of Delivery
Single door:
1 track rail
2 trolleys

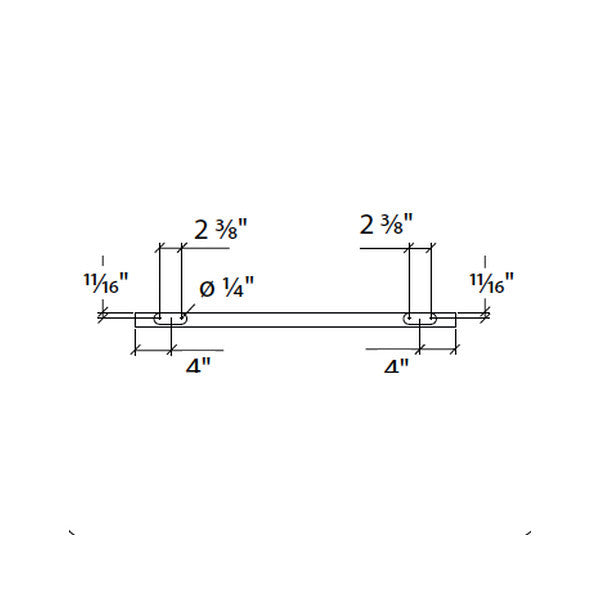

3 (4) wall mounts
1 door bottom guide
2 door stoppers
hanger bolts
Area of application: Wooden doors Assembly: Wall mounting Classification: | - | 6 | 2 | 0 | - | 4 | - | 1 | 3 | Door leaf thickness: 1-3/8" - 1-3/4" (36-45mm) Door width: 31-4/5" - 37-3/8" (800-950mm) Field of application: 1-leaf sliding doors Passage width: 29-1/2" - 35-7/16" (750-900mm) Series: Antra I Standard: Tested by Intertek according to ANSI/BHMA A156.14-2013
Downloads
Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
Spacer disk set for drywall
Spacer for wooden doors D 9/16", L 1-5/6"
