Sliding door hardware AS50, glass

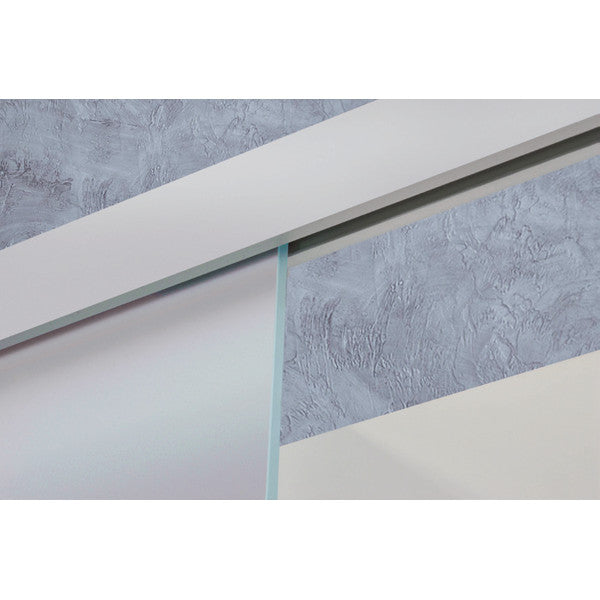

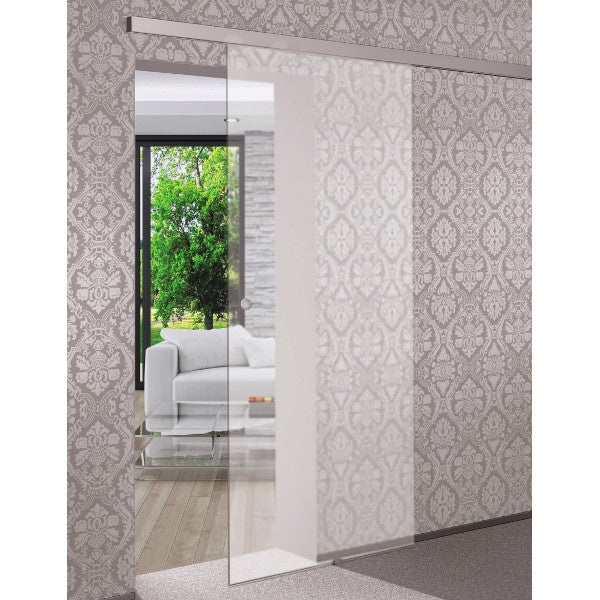

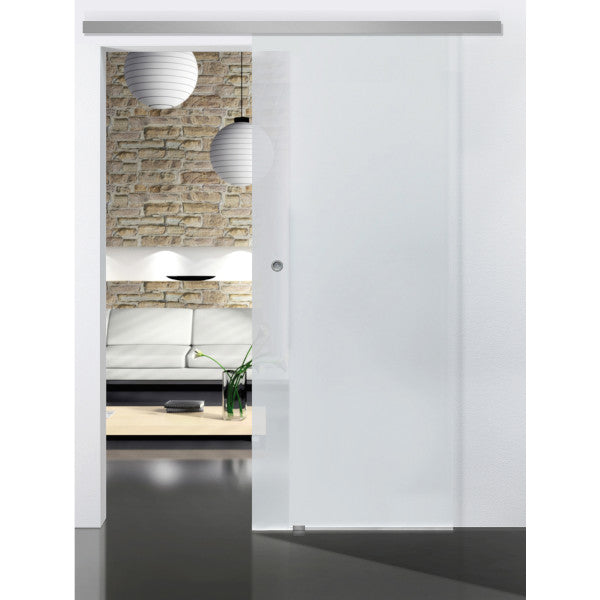

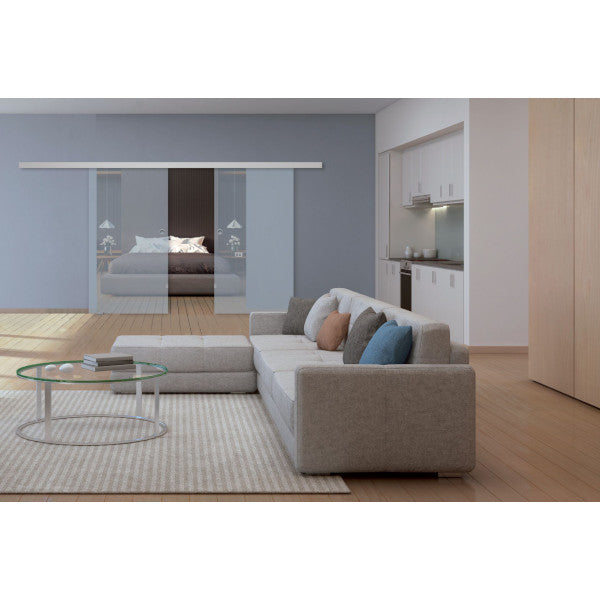

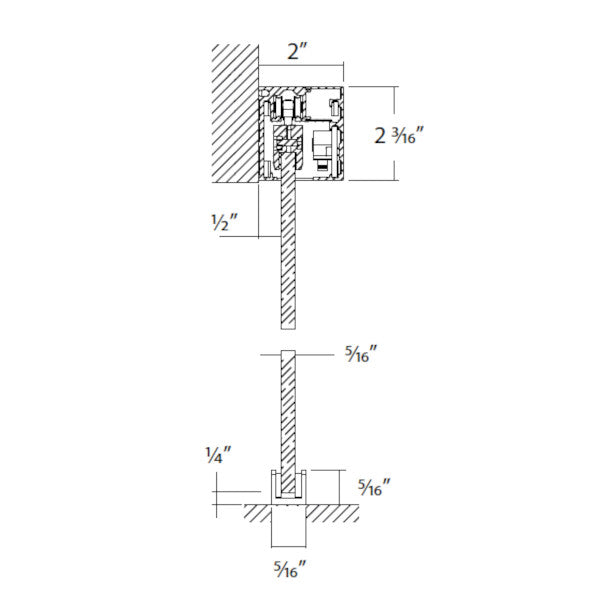

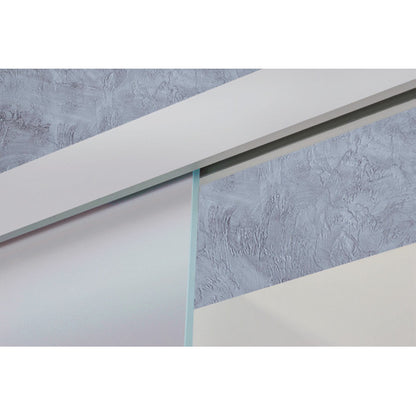

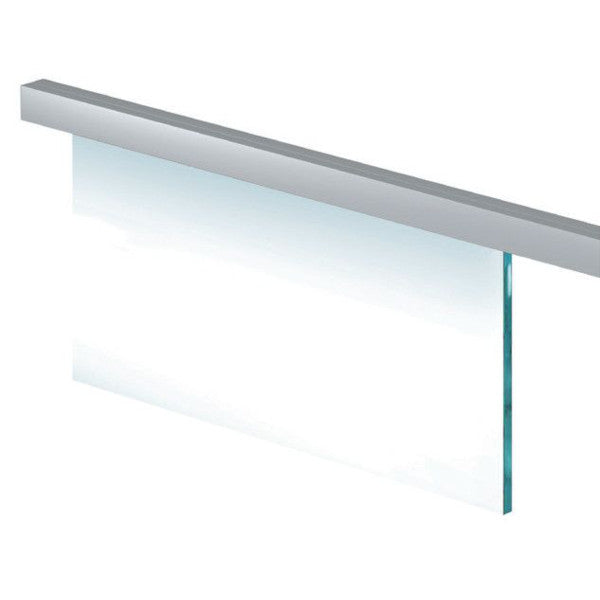

The AS50 barn door hardware for glass doors features a slim, compact aluminum track profile that keeps the installation clean and unobtrusive – letting the glass door take center stage. With profile dimensions of 2-3/8" x 2-5/8" (60 x 66 mm), the track is barely noticeable against the wall.

Made from natural anodized aluminum, the system uses clamping shoes to secure the glass – no drilling required in the door panel. It supports toughened safety glass (ESG) with a thickness of 5/16" (8mm) and door weights of up to 100 lbs (45 kg). Height-adjustable wall mounts of ±1/8" (3mm) ensure precise alignment. Initial friction is less than 10 NM. Soft close is optionally available, as are wall spacers and recessed or bar handles.

Available in four passage widths from 29-1/2" to 49-3/16" for single door configurations. Assembly: wall mounting. Surface: natural anodized aluminum.

1 6

Surface natural anodized

Passage width 29-1/2" - 35-7/16" (750-900mm) 35-13/16" - 39-3/8" (910-1000mm) 39-3/4" - 44-1/16" (1010-1120mm) 44-1/2" - 49-3/16" (1130-1250mm)

Number of door leaves 1

SKU:

SKU:111.00006

$624.00 USD

Sale Sold out

Shipping calculated at checkout.

View full details

Product Information

Features
Material: Aluminium natural anodized
Door leaf thickness: 5/16" (8mm) toughened safety glass
Door weight max: 100 lbs (45kg)
Initial friction < 10 NM
Height adjustment +/- 1/8" (3mm)
Optional: Wall spacer (set), recessed handle or bar handle
Benefits
Scope of Delivery
1 track rail
2 trolley rollers
2 clamping shoes
2 door stoppers
2 end caps
1 bottom guide
1 installation material

Technical Details

Area of application: Glass doors
Assembly: Wall mounting
Damping: Soft close optionally available
Door leaf thickness: 3/8" (8mm)
Door processing: for clamping
Initial friction: < 10NM
Material: Aluminium
Number of door leaves: 1
Passage width, max.: 35-3/8" (900mm)
Passage width, min.: 29-4/8" (750mm)
Rail length: 73-2/8" (1860mm)
Series: AS50
Setting options: height adjustable ± 1/8" (3mm)
Suitable for door width max.: 37-3/8" (950mm)
Suitable for door width min.: 31-4/8" (800mm)
Type of glass: Toughened safety glass (ESG)
Surface: natural anodised
