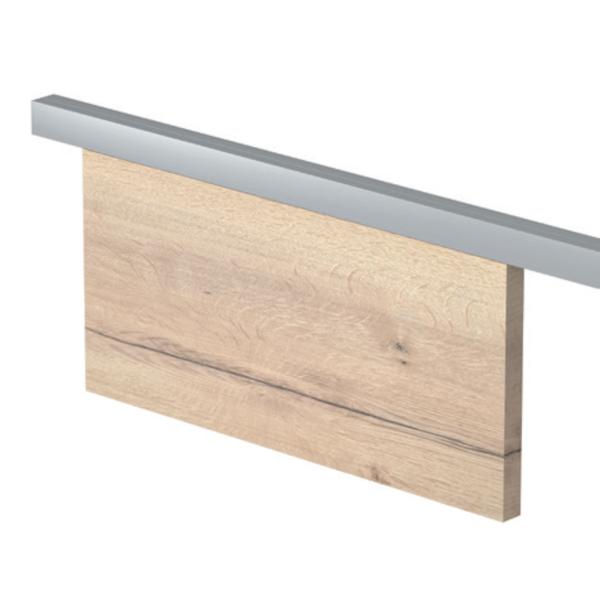

Sliding door hardware AS50, wood

The AS50 barn door hardware for wooden doors features a slim, concealed-look aluminum track profile for a clean and minimalist appearance. The track sits flush against the wall, keeping the focus on the door itself – ideal for modern interiors where hardware should blend into the architecture rather than stand out.

Made from natural anodized aluminum with height-adjustable wall mounts of ±1/8" (3mm), the AS50 ensures precise installation and a level door position. The system supports door weights of up to 100 lbs (45 kg) with door thickness from 1-8/16" to 1-12/16" (38–45 mm). Initial friction is less than 10 NM. Soft close is optionally available, as are wall spacers and recessed or bar handles to complete the installation.

Available in four passage widths from 29-1/2" to 49-3/16" for single door configurations. Assembly: wall mounting. Surface: natural anodized aluminum.

1 4

Surface natural anodized

Passage width 29-1/2" - 35-7/16" (750-900mm) 35-13/16" - 39-3/8" (910-1000mm) 39-3/4" - 44-1/16" (1010-1120mm) 44-1/2" - 49-3/16" (1130-1250mm)

Number of door leaves 1

SKU:

SKU:111.00010

$605.00 USD

Sale Sold out

Shipping calculated at checkout.

View full details

Product Information

Features
Material: Aluminium natural anodized
Door leaf thickness: 1-8/16" - 1-12/16" (38-45 mm)
Door weight max: 100lbs (45kg)
Initial friction < 10 NM
Height adjustment +/- 1/8" (3mm)
Optional: Wall spacer (set), recessed handle or bar handle
Benefits
Scope of Delivery
1 track rail
2 trolley rollers
2 support plates
2 door stoppers
2 end caps
1 bottom guide
1 installation material

Technical Details

Area of application: Wooden doors
Assembly: Wall mounting
Damping: Soft close optionally available
Door leaf thickness: 1-4/8" - 1-6/8" (38-45mm)
Door processing: for screwing on
Initial friction: < 10NM
Material: Aluminium
Number of door leaves: 1
Passage width, max.: 35-3/8" (900mm)
Passage width, min.: 29-4/8" (750mm)
Rail length: 73-2/8" (1860mm)
Series: AS50
Setting options: height adjustable ± 1/8" (3mm)
Suitable for door width max.: 37-3/8" (950mm)
Suitable for door width min.: 31-4/8" (800mm)
Surface: natural anodised
