Sliding door hardware Casa Project, wood

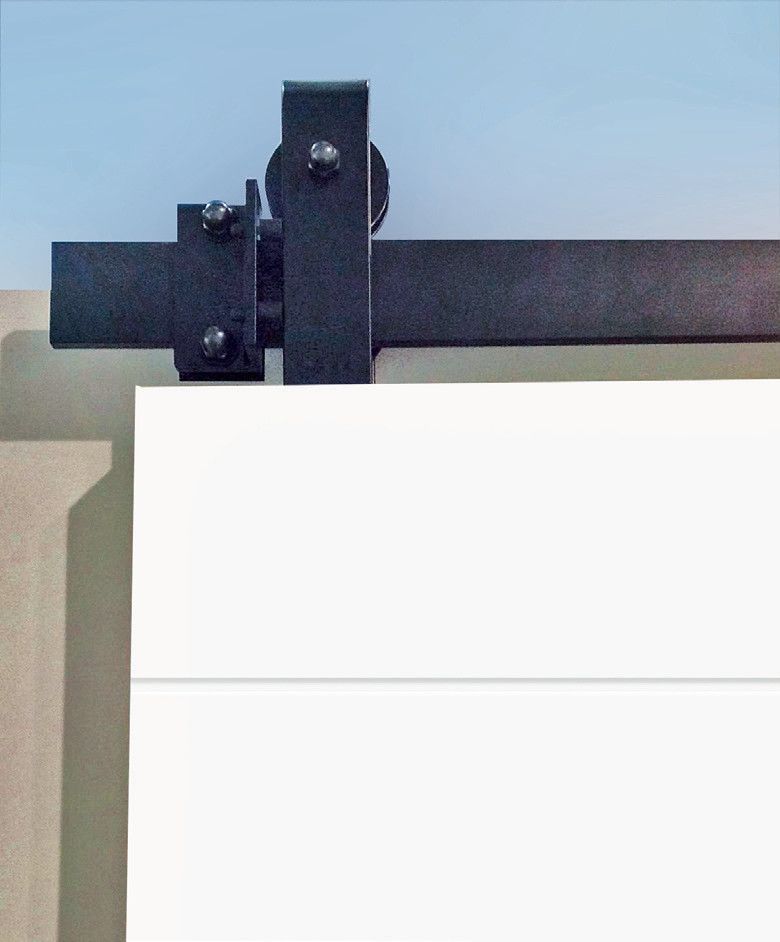

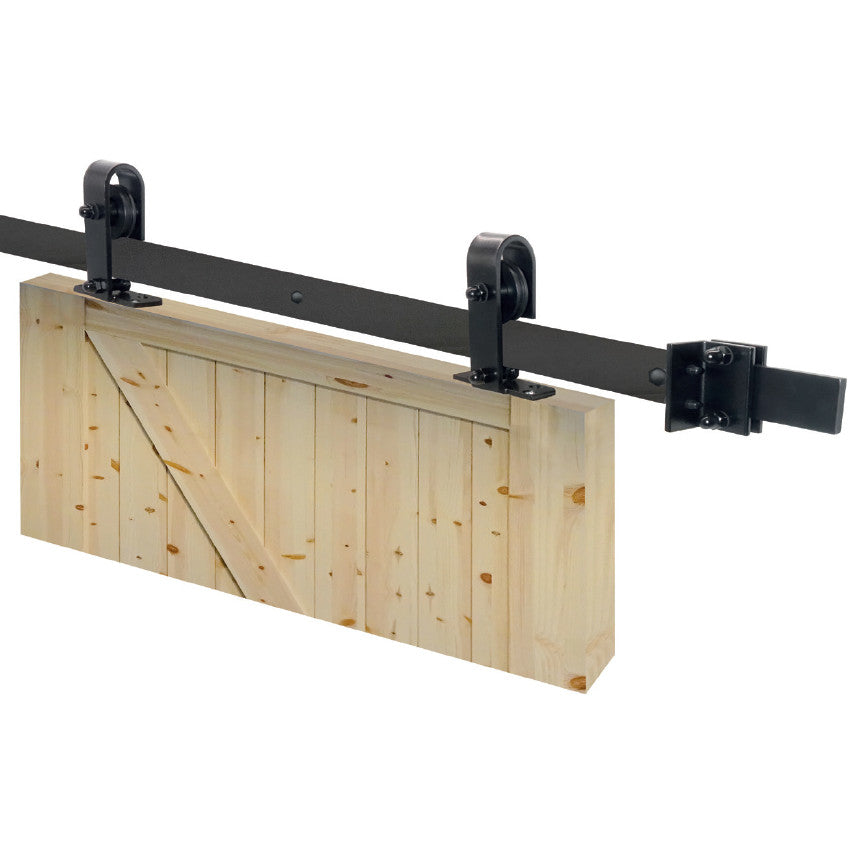

The Casa Project barn door hardware for wooden doors features a vintage-style design with a slim, flat track profile measuring 1-5/8" x 4/16" (40 x 6 mm) – narrower than the standard model, giving it a lighter and more refined appearance. The distinctive look suits both private interiors and public spaces such as hotels, offices, and retail environments.

Made from powdered steel with heavy duty polymer rollers and an anti-jump device, the Casa Project barn door hardware is available in black powder coated finish. Soft close is optionally available, as is a matching pull handle in the same Casa design. Supports wooden door weights of up to 132 lbs (60 kg) with a door thickness of 1-3/8" to 2-1/4".

Available for single door configurations in three passage widths from 29-1/2" to 49-3/16". ANSI/BHMA A156.14-2013 Grade 1 internal test certified.

1 3

Surface black coated

Passage width 29-1/2" - 35-7/16" (750-900mm) 44-1/2" - 49-3/16" (1130-1250mm) 35-13/16" - 39-3/8" (910-1120mm)

Number of door leaves 1

SKU:

SKU:110.00638

$122.00 USD

Sale Sold out

Shipping calculated at checkout.

View full details

Product Information

Features
Single door sets
Anti-jump device
Made from powdered steel
Heavy duty polymer roller
Finish options: Black
Benefits
Match ANSI/BHMA A156.14-2013 Grade 1 Internal test
door thickness t = 1 3/8“ – 1 3/4“, + 2 1/4“
Initial friction < 10 NM
Maximum door weight: 132 lbs (60 kg)
Soft-close optional
Scope of Delivery
Single door:
1 track rail
2 trolleys
4 (5) wall mounts
2 door stoppers
1 bottom guide
hanger bolts

Technical Details

The Casa Project barn door hardware for wooden doors features a vintage-style design with a slim, flat track profile measuring 1-5/8" x 4/16" (40 x 6 mm) – narrower than the standard model, giving it a lighter and more refined appearance. The distinctive look suits both private interiors and public spaces such as hotels, offices, and retail environments.

Made from powdered steel with heavy duty polymer rollers and an anti-jump device, the Casa Project barn door hardware is available in black powder coated finish. Soft close is optionally available, as is a matching pull handle in the same Casa design. Supports wooden door weights of up to 132 lbs (60 kg) with a door thickness of 1-3/8" to 2-1/4".

Available for single door configurations in three passage widths from 29-1/2" to 49-3/16". ANSI/BHMA A156.14-2013 Grade 1 internal test certified.
