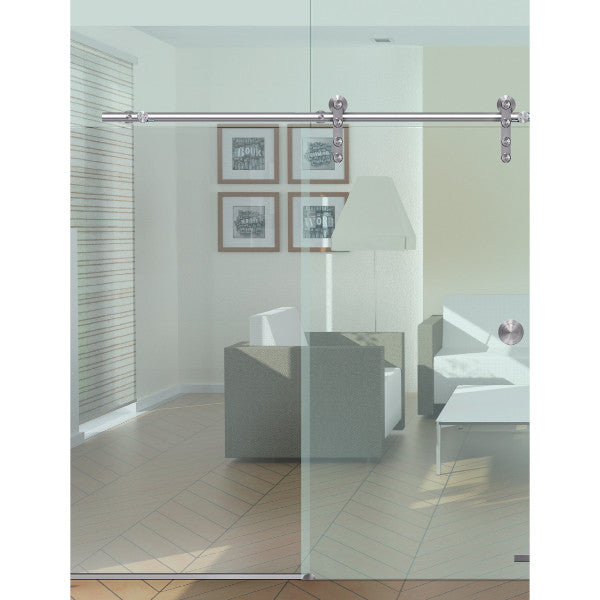

Sliding door hardware Flatec I, glass

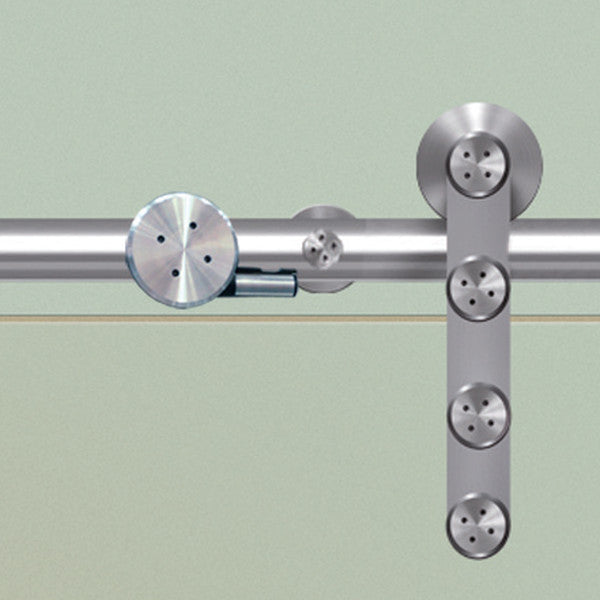

The Flatec I barn door hardware for glass doors features a minimalist round-rail design with a solid track rail for smooth and quiet operation. As the original Flatec classic, it combines a clean aesthetic with robust, high-end performance – ideal for architectural and hospitality applications.

Made from stainless steel (AISI 304L) with heavy duty polymer rollers and an anti-jump device, the Flatec I includes soft-close (Soft-Tec) as standard. Height adjustable wall mounts of ±1/8" ensure precise installation. Supports glass door weights of up to 320 lbs (145 kg) with a door thickness of 5/16" to 1/2", suitable for laminated safety glass (VSG) and toughened safety glass (ESG).

Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". ANSI/BHMA A156.14-2013 Grade 1 certified by Intertek.

1 7

Surface Satin stainless steel

Passage width 29-1/2" - 35-7/16" (750-900mm) 35-13/16" - 39-3/8" (910-1000mm) 39-3/4" - 44-1/16" (1010-1120mm) 44-1/2" - 49-3/16" (1130-1250mm) 59" - 70-7/8" (1500-1800mm) 79" - 94-1/2" (2000-2400mm)

Number of door leaves 1 2

SKU:

SKU:USU44DS-2100EF

$1,535.00 USD

Sale Sold out

Shipping calculated at checkout.

View full details

Product Information

Features
Single and biparting door sets
Anti-jump device
Solid track rail for smooth and quiet operation
Made from stainless steel (AISI304L)
Heavy duty polymer roller
Finish options: satin stainless steel
Benefits
ANSI/BHMA A156.14-2013 tested and certified grade 1 Intertek certification
Door thickness: 5/16” – 1/2”
Initial friction < 10 NM
Maximum door weight: 320 lbs (145 kg)
Trolley height adjustment: ± 1/8"
Including softstop Soft-Tec
Scope of Delivery
Single door:
1 track rail

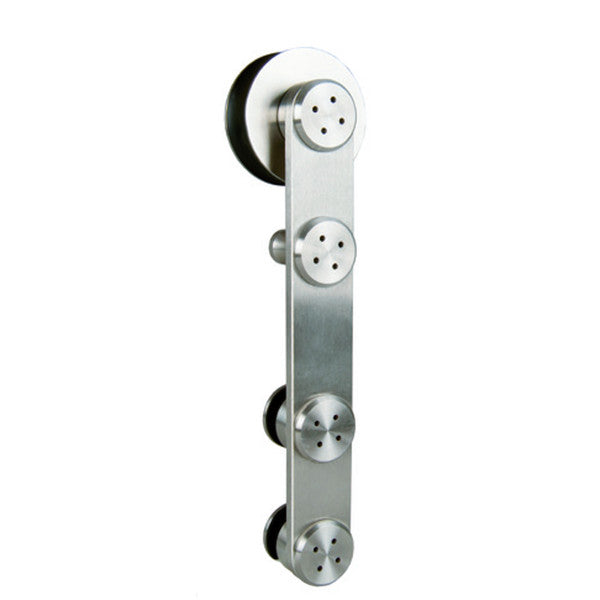

2 trolleys
3 (4) wall mounts
2 softstops Soft-Tec
1 door bottom guide
hanger bolts

Biparting door:
2 track rails + connector
4 trolleys
7 (9) wall mounts
2 softstops Soft-Tec
2 door stoppers
1 double door stopper
2 door bottom guides
hanger bolts

Technical Details

Area of application: Glass doors
Assembly: Wall mounting
Classification: | - | 6 | 2 | 0 | - | 4 | - | 1 | 3 |
Door leaf thickness: 5/16" - 4/8" (8-12mm)
Door width: 31-4/5" - 37-3/8" (800-950mm)
Field of application: 1-leaf sliding doors
Passage width: 29-1/2" - 35-7/16" (750-900mm)
Series: Flatec I
Setting options: height adjustable ± 1/8" (3mm)
Standard: Tested by Intertek according to ANSI/BHMA A156.14-2013

Downloads

Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
