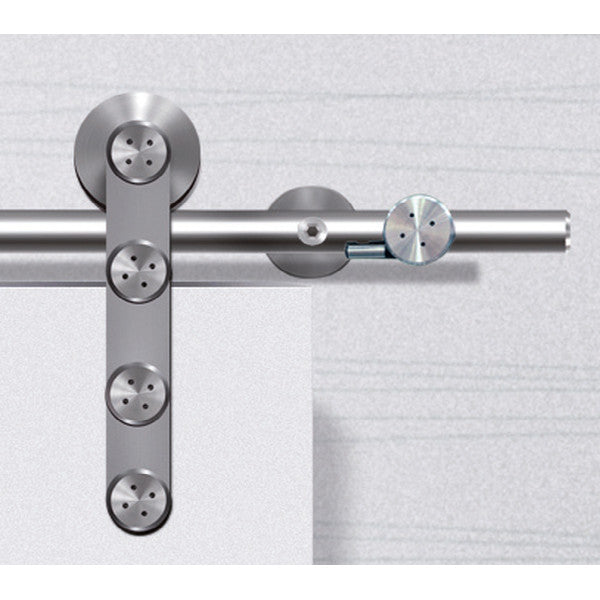

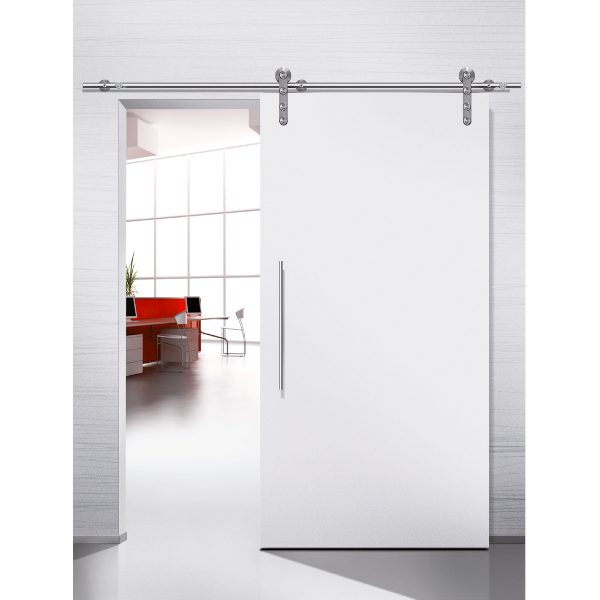

The Flatec I barn door hardware for wooden doors features a minimalist round-rail design with a solid track rail for smooth and quiet operation. As the original Flatec classic, it combines a clean aesthetic with robust, high-end performance – ideal for architectural and hospitality applications.
Made from stainless steel (AISI 304L) with heavy duty polymer rollers and an anti-jump device, the Flatec I includes soft-close (Soft-Tec) as standard. Height adjustable wall mounts of ±1/8" ensure precise installation. Supports wooden door weights of up to 320 lbs (145 kg) with a door thickness of 1-7/16" to 1-3/4".
Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". ANSI/BHMA A156.14-2013 Grade 1 certified by Intertek.
Single and biparting door setsAnti-jump device
Solid track rail for smooth and quiet operation
Made from stainless steel (AISI304L)
Heavy duty polymer roller
Finish options: satin stainless steel
Benefits
ANSI/BHMA A156.14-2013 tested and certified grade 1 Intertek certification
Door thickness: 1 7/16“ - 1 3/4“
Initial friction < 10 NM
Maximum door weight: 320 lbs (145 kg)
Height adjustment: ± 1/8”
Including softstop Soft-Tec
Scope of Delivery
Single door:
1 track rail

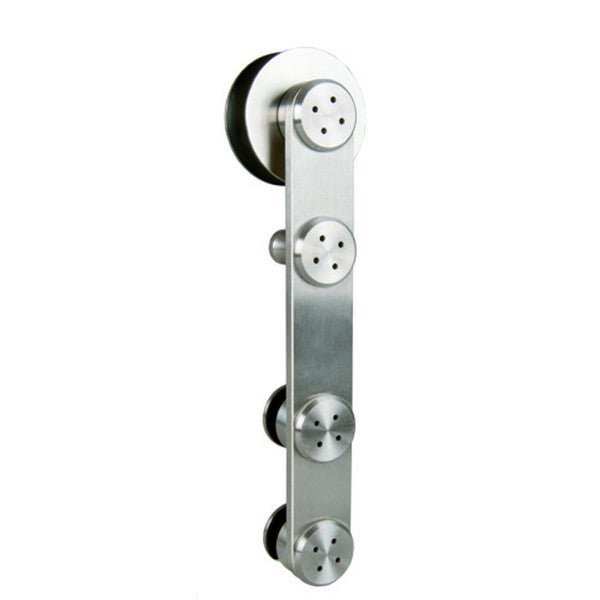

2 trolleys
3 (4) wall mounts
2 softstops Soft-Tec
1 door bottom guide
hanger bolts
Area of application: Wooden doors Assembly: Wall mounting Classification: | - | 6 | 2 | 0 | - | 4 | - | 1 | 3 | Door leaf thickness: 1-3/8" - 1-3/4" (36-45mm) Door width: 37-6/8" - 41-3/8" (960-1050mm) Field of application: 1-leaf sliding doors Passage width: 29-1/2" - 35-7/16" (750-900mm) Series: Flatec I Setting options: height adjustable ± 1/8" (3mm) Standard: Tested by Intertek according to ANSI/BHMA A156.14-2013
Downloads
Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
