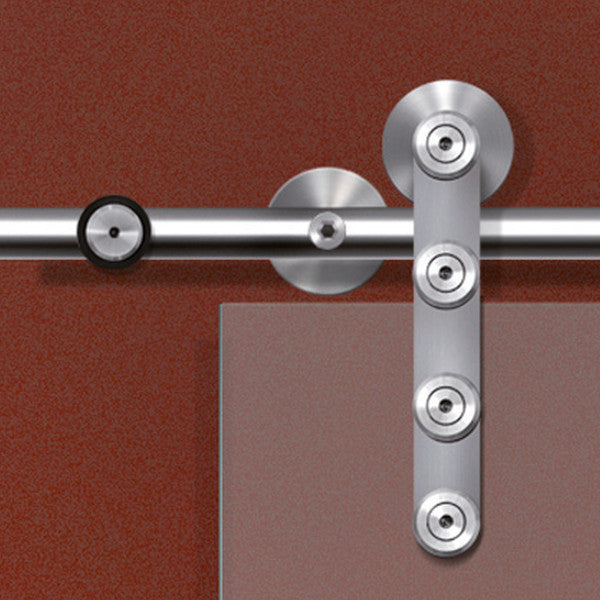

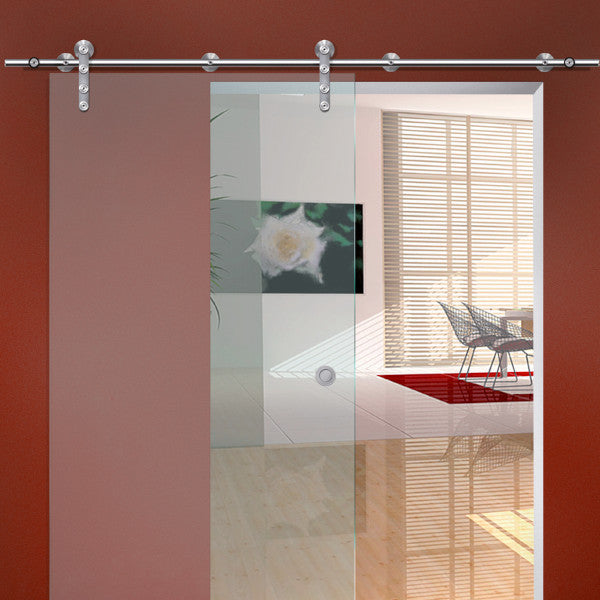

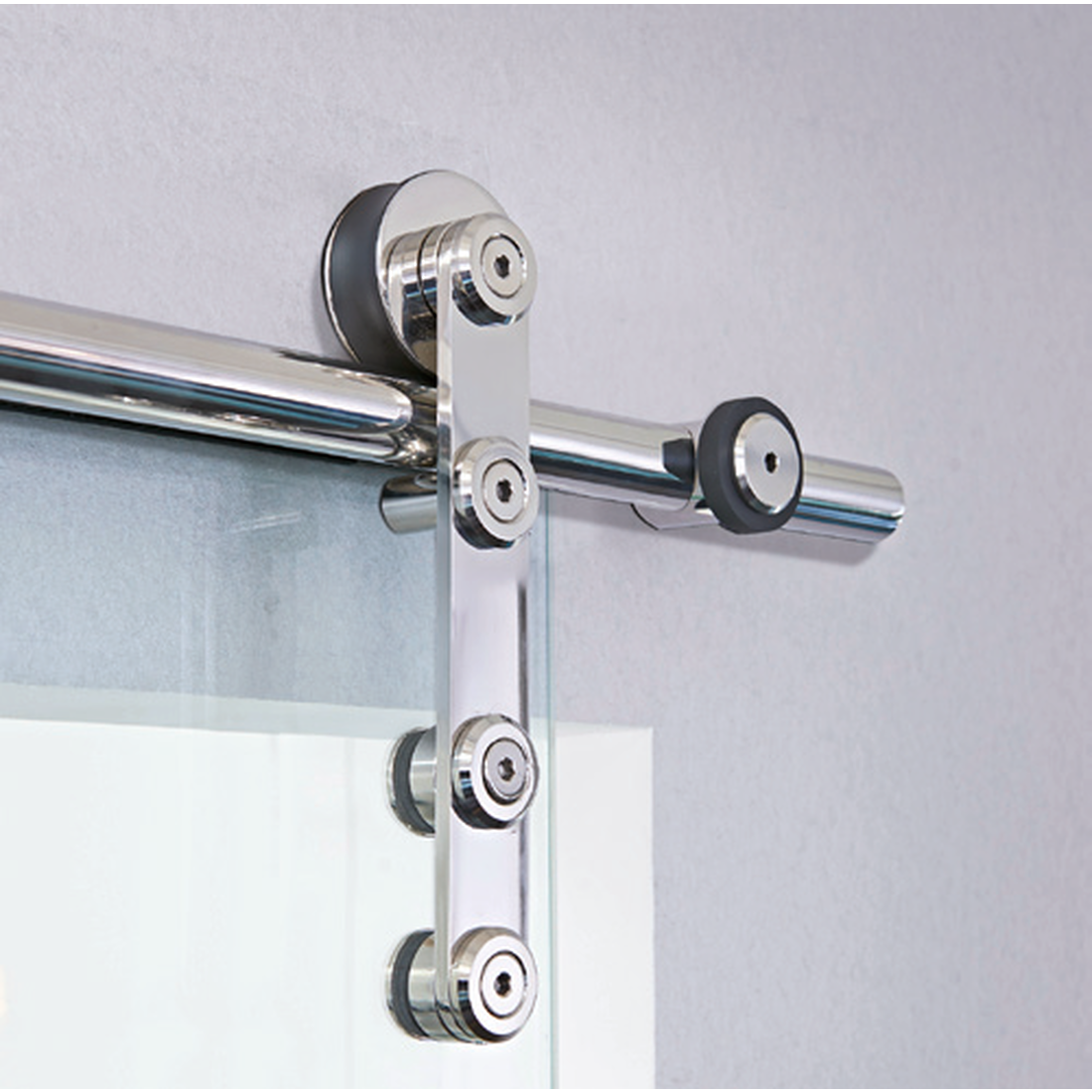

The Flatec IV barn door hardware for glass doors features a minimalist round-rail design with a distinctive multi-roller carriage in satin stainless steel or polished stainless steel finish. Designed for hospitality and commercial office environments, it combines a refined aesthetic with robust performance.
Made from stainless steel (AISI 304L) with heavy duty polymer rollers and an anti-jump device, the Flatec IV delivers smooth and quiet operation. Height adjustable wall mounts of ±1/8" ensure precise installation. Supports glass door weights of up to 320 lbs (145 kg) with a door thickness of 5/16" to 1/2", suitable for laminated safety glass (VSG) and toughened safety glass (ESG).
Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". ANSI/BHMA A156.14-2013 Grade 1 certified by Intertek.
Application for hospitality and building offices
Single and biparting door sets
Anti-jump device
Made from stainless steel (AISI304L)
Heavy duty polymer roller
Finish options: satin stainless steel
Benefits
ANSI/BHMA A156.14-2013 tested and certified grade 1 Intertek certification
Door thickness: 5/16" – 1/2"
Initial friction < 10 NM
Maximum door weight: 320 lbs (145 kg)
Height adjustment ± 1/64"
Scope of Delivery
Single door set includes:
1 track rail

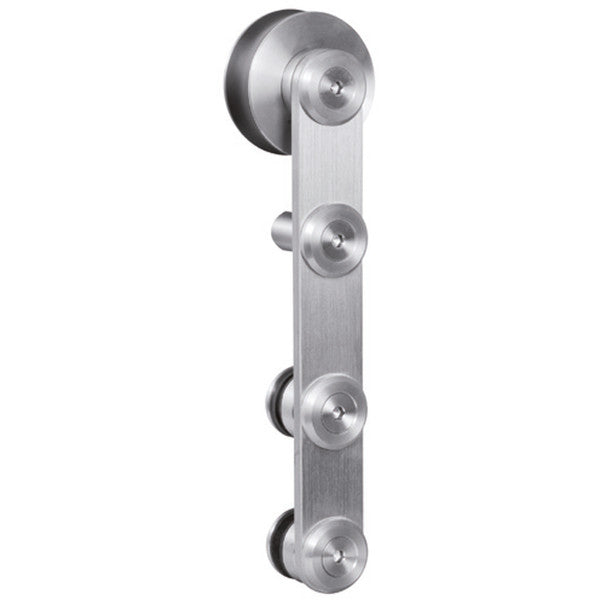

2 trolleys
4 (5) wall mounts
1 door bottom guide
2 Doorstoppers
hanger bolts
Biparting door set includes:
2 track rails + connector
4 trolleys
8 (10) wall mounts
4 Doorstoppers
2 door bottom guides
1 Double door stop
hanger bolts
Technical Details
Area of application: Glass doors Assembly: Wall mounting Classification: | - | 6 | 2 | 0 | - | 4 | - | 1 | 3 | Door leaf thickness: 5/16" - 4/8" (8-12mm) Door width: 31-4/5" - 37-3/8" (800-950mm) Field of application: 1-leaf sliding doors Passage width: 29-1/2" - 35-7/16" (750-900mm) Series: Flatec IV Setting options: height adjustable ± 1/8" (3mm) Standard: Tested by Intertek according to ANSI/BHMA A156.14-2013
