Sliding door hardware Flatec IV, wood

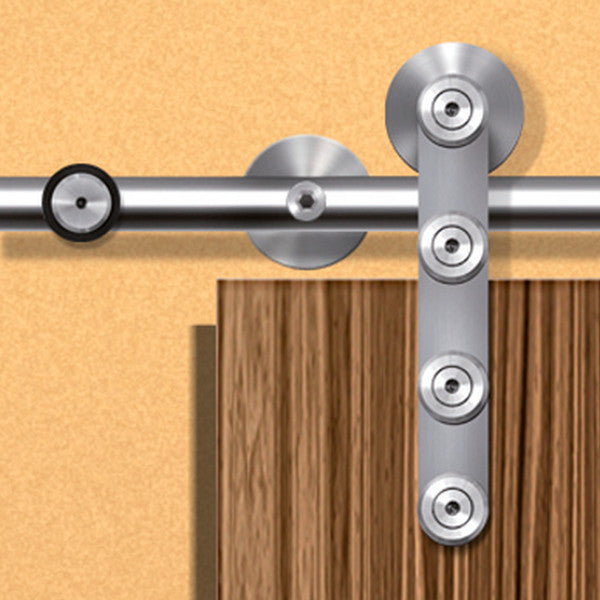

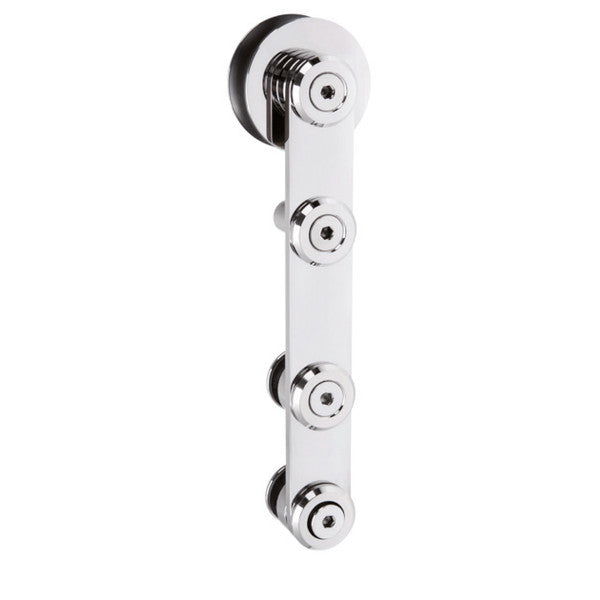

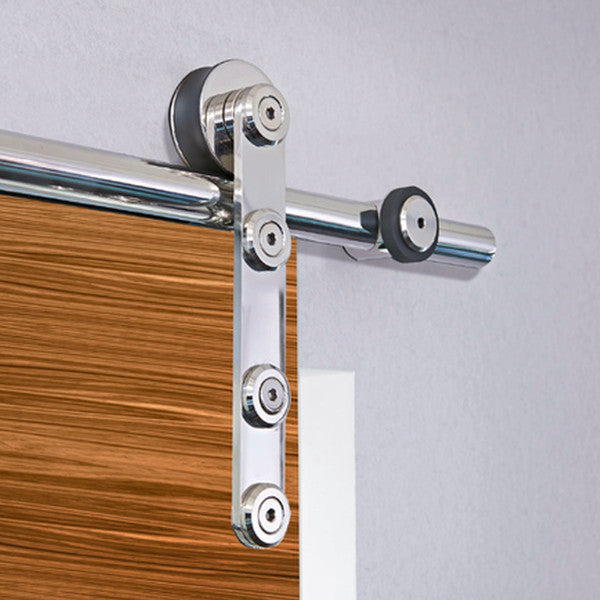

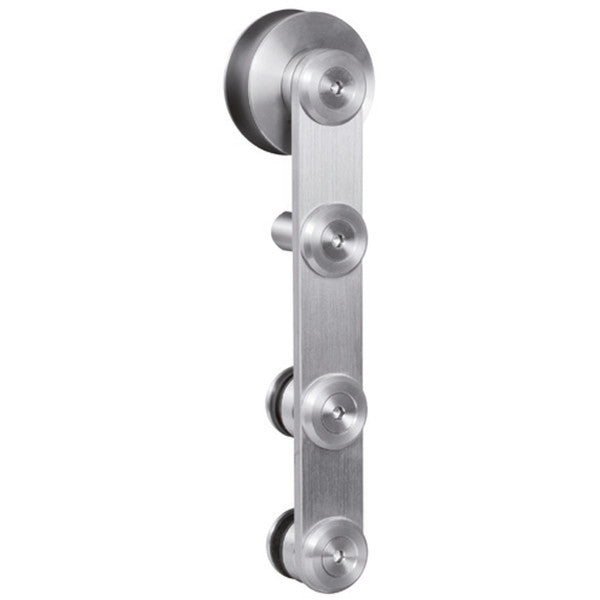

The Flatec IV barn door hardware for wooden doors features a minimalist round-rail design with a distinctive multi-roller carriage in satin stainless steel or polished stainless steel finish. Designed for hospitality and commercial office environments, it combines a refined aesthetic with robust performance.

Made from stainless steel (AISI 304L) with heavy duty polymer rollers and an anti-jump device, the Flatec IV delivers smooth and quiet operation. Height adjustable wall mounts of ±1/8" ensure precise installation. Supports wooden door weights of up to 320 lbs (145 kg) with a door thickness of 1-7/16" to 1-3/4".

Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". ANSI/BHMA A156.14-2013 Grade 1 certified by Intertek.

Product Information

Features
Application for hospitality and building offices
Single and biparting door sets
Anti-jump device
Made from stainless steel (AISI304L)
Heavy duty polymer roller
Finish options: satin stainless steel
Benefits
ANSI/BHMA A156.14-2013 tested and certified grade 1 Intertek certification
Door thickness: 1 7/16“ - 1 3/4“
Initial friction < 10 NM
Maximum door weight: 320 lbs (145 kg)
Height adjustment ± 1/64"
Scope of Delivery
Single door:
1 track rail
2 trolleys
4 (5) wall mounts
1 door bottom guide
2 door stoppers
hanger bolts

Biparting door:
2 track rails + connector
4 trolleys
8 (10) wall mounts
4 Doorstoppers
2 door bottom guides
hanger bolts

Technical Details

Area of application: Wooden doors
Assembly: Wall mounting
Classification: | - | 6 | 2 | 0 | - | 4 | - | 1 | 3 |
Door leaf thickness: 1-3/8" - 1-3/4" (36-45mm)
Door width: 31-4/5" - 37-3/8" (800-950mm)
Field of application: 1-leaf sliding doors
Passage width: 29-1/2" - 35-7/16" (750-900mm)
Series: Flatec IV
Setting options: height adjustable ± 1/8" (3mm)
Standard: Tested by Intertek according to ANSI/BHMA A156.14-2013

Downloads

Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
