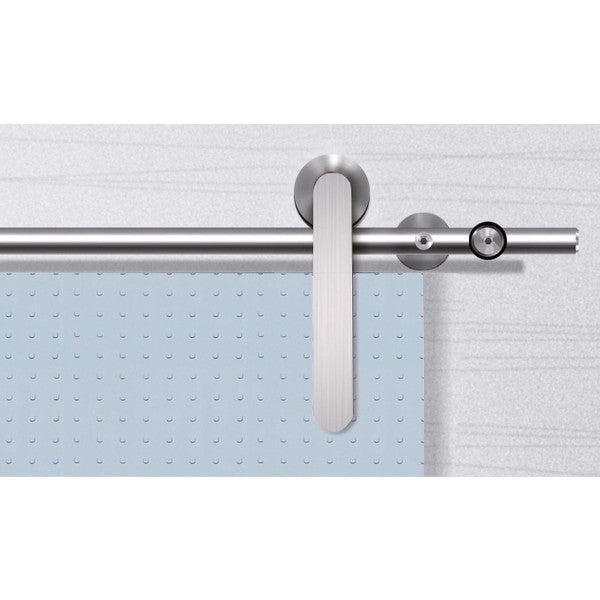

Sliding door hardware Pandora, glass

The Pandora sliding door hardware for glass doors is a premium ceiling-mounted sliding door system featuring low-profile trolleys with decorative covers and no visible screws. Available in five surface finishes – satin stainless steel, polished stainless steel, black powder coated, dark bronze, and matte gold (also known as satin brass or US4 finish) – the Pandora adapts to a wide range of interior styles from modern to transitional.

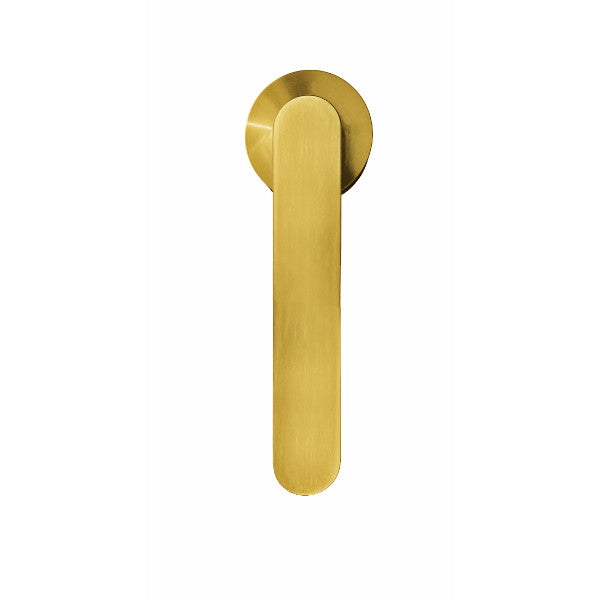

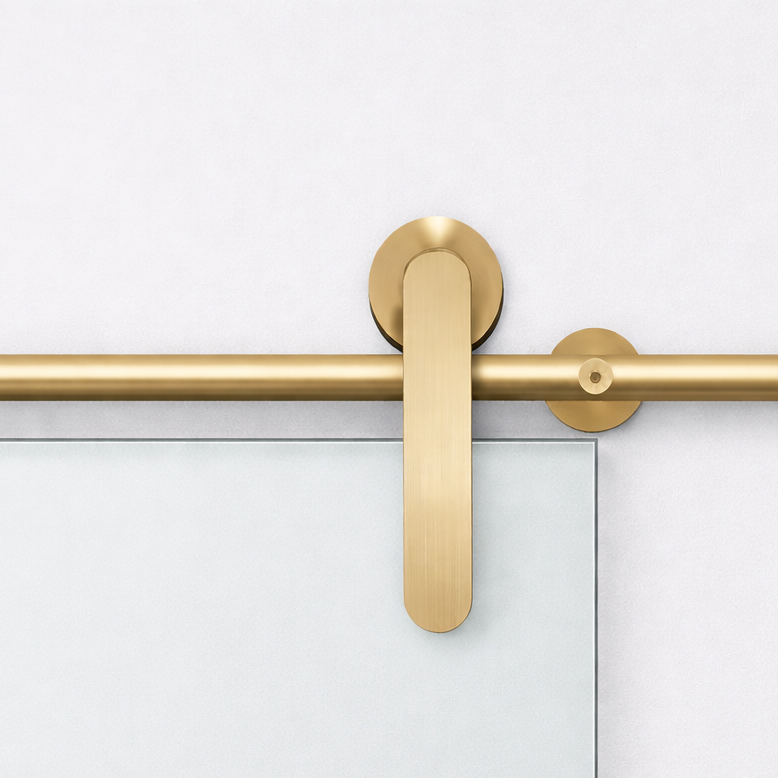

The matte gold / satin brass finish is the standout option of the Pandora series, combining warm tones with the precision engineering and durability of stainless steel (AISI 304L). The Click & Safe anti-jump device ensures reliable door guidance at all times. Supports glass door weights of up to 320 lbs (145 kg) with a door thickness of 5/16" to 1/2", suitable for laminated safety glass (VSG) and toughened safety glass (ESG).

Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". ANSI/BHMA A156.14-2013 Grade 1 internal test certified.

Product Information

Features
Single and biparting door sets
Click & safe anti-jump device
Made from stainless steel (AISI304L)
Heavy duty polymer roller
Finish options: satin stainless steel, polished stainless steel, stainless steel powdered in black, dark bronze or mattgold
Benefits
Meets ANSI/BHMA A156.14-2013 grade 1 Internal test
Door thickness: 5/16” – 1/2” (8-12mm)
Initial friction < 10 NM
Maximum door weight: 320 lbs (145 kg)
Scope of Delivery
Single door:
1 track rail
2 trolleys
4 (5) wall mounts
2 door stoppers
1 door bottom guide
hanger bolts

Biparting door:
2 track rails + connector
4 trolleys
8 (10) wall mounts
4 door stoppers
2 door bottom guides
1 double door stopper
hanger bolts

Technical Details

Area of application: Glass doors
Assembly: Wall mounting
Door leaf thickness: 5/16" - 4/8" (8-12mm)
Initial friction: < 10NM
Material: Stainless steel (1.4301)
Number of door leaves: 1
Passage width, max.: 35-3/8" (900mm)
Passage width, min.: 29-4/8" (750mm)
Rail length: 70-7/8" (1800mm)
Series: Pandora
Standard: Factory test
Suitable for door width max.: 37-3/8" (950mm)
Suitable for door width min.: 31-4/8" (800mm)
Type of glass: Laminated safety glass (VSG), Toughened safety glass (ESG)
Surface: Fine tuning

Downloads

Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
