Sliding door hardware Pandora, wood

The Pandora sliding door hardware for wooden doors is a premium ceiling-mounted sliding door system featuring low-profile trolleys with decorative covers and no visible screws. Available in five surface finishes – satin stainless steel, polished stainless steel, black powder coated, dark bronze, and matte gold (also known as satin brass or US4 finish) – the Pandora adapts to a wide range of interior styles from modern to transitional.

The matte gold / satin brass finish is the standout option of the Pandora series, combining warm tones with the precision engineering and durability of stainless steel (AISI 304L). The Click & Safe anti-jump device ensures reliable door guidance at all times. Supports wooden door weights of up to 320 lbs (145 kg) with a door thickness of 1-7/16" to 1-3/4".

Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". ANSI/BHMA A156.14-2013 Grade 1 internal test certified.

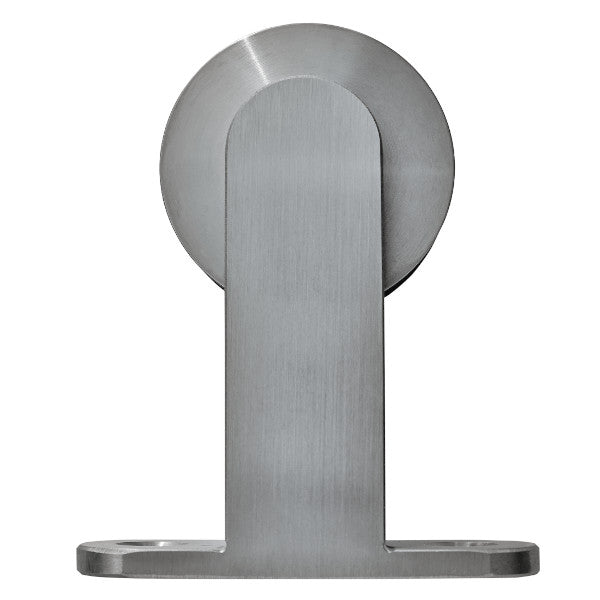

  • Pandora barn door hardware trolley in satin stainless steel for mounting on wooden doors

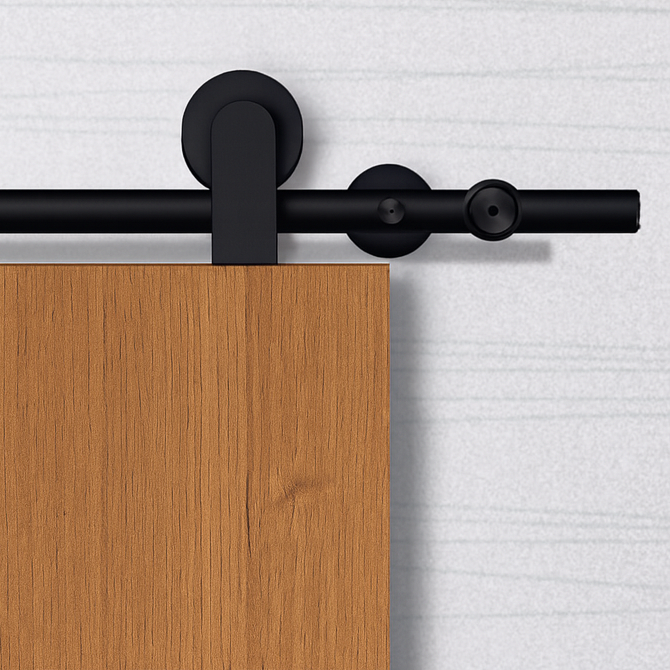

  • Sliding door hardware Pandora with trolleys for mounting on the top on the wooden doors leaf

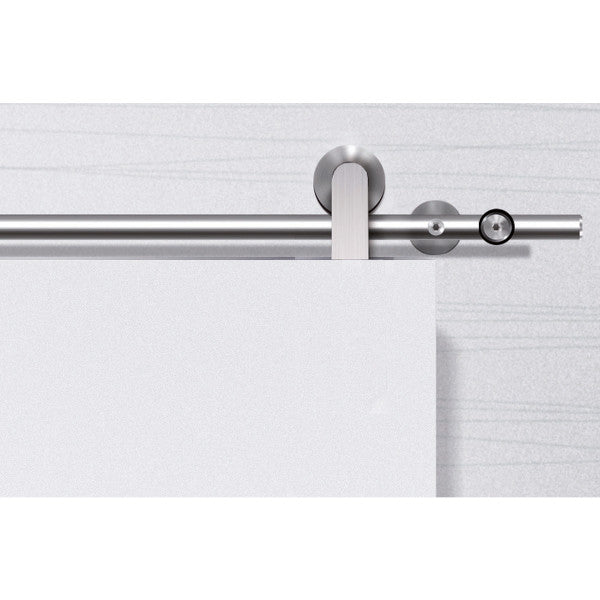

  • Pandora barn door hardware trolley in black installed on wooden door

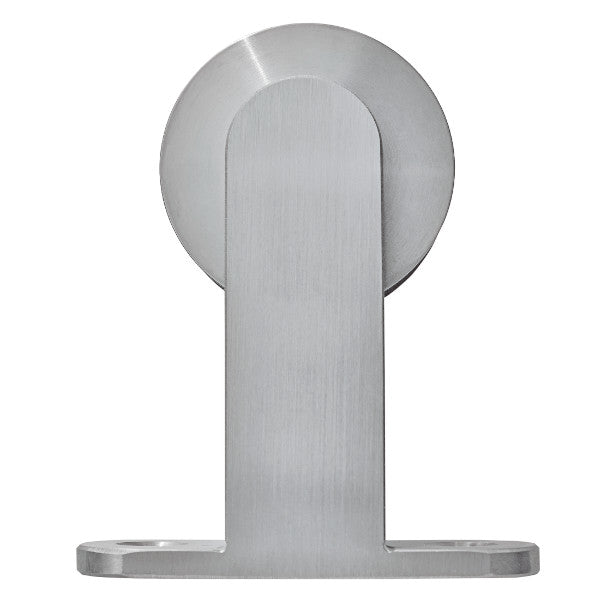

  • Pandora barn door hardware trolley in polished stainless steel for mounting on wooden doors

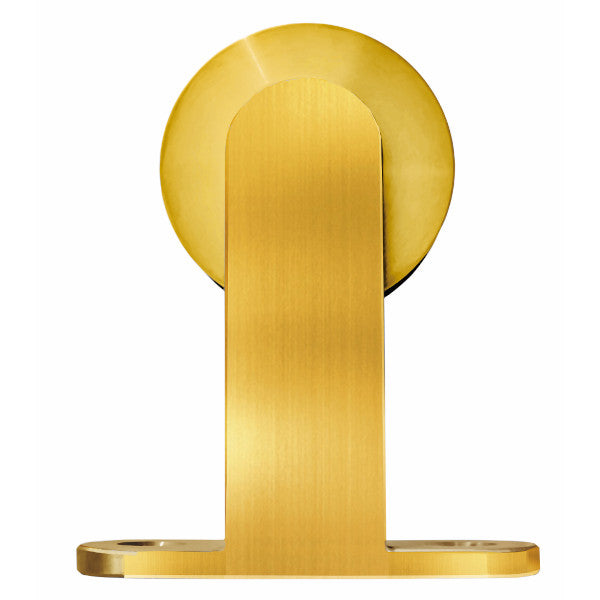

  • Pandora barn door hardware trolley in matte gold for mounting on wooden doors

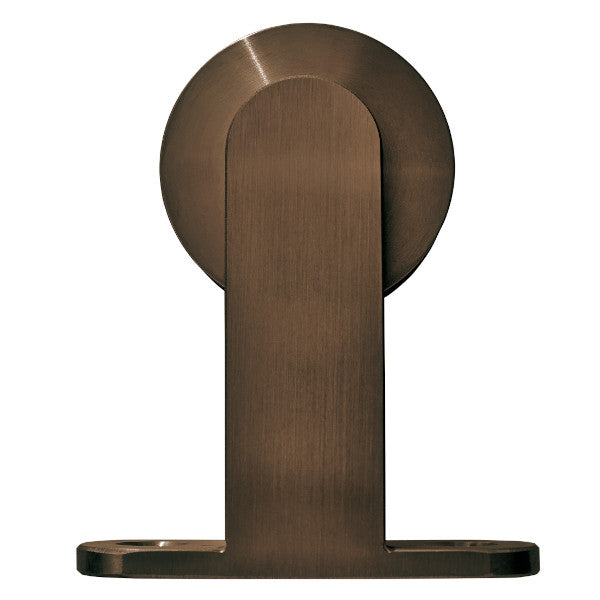

  • Pandora barn door hardware trolley in dark bronze for mounting on wooden doors

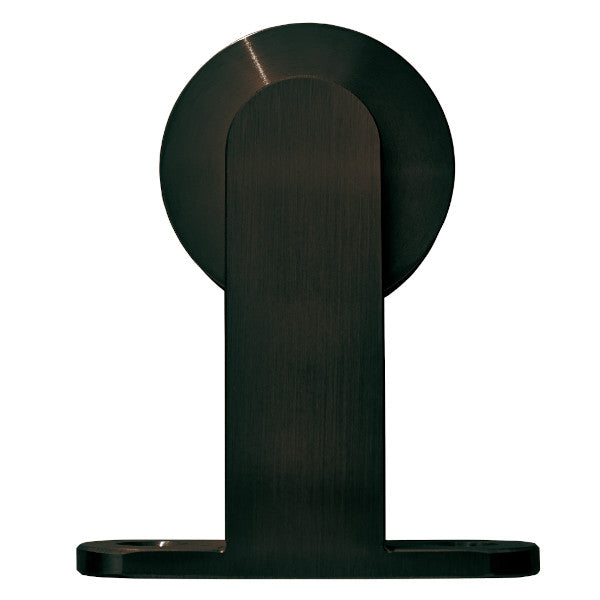

  • Pandora barn door hardware trolley in black for mounting on wooden doors
1 10
Surface
Passage width
Number of door leaves

SKU:

110.00353

$1,439.00 USD
$1,439.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Product Information

  • Features

    Single and biparting door sets
    Click & Safe anti-jump device
    Made from stainless steel (AISI304L)
    Heavy duty polymer roller
    Finish options: satin stainless steel, polished stainless steel, stainless steel powdered in black, dark bronze or mattgold

  • Benefits

    Meets ANSI/BHMA A156.14-2013 grade 1 Internal test
    Door thickness: 1-7/16" - 1-3/4" (38-45mm)
    Initial friction < 10 NM
    Maximum door weight: 320 lbs (145 kg)

  • Scope of Delivery

    Single door:
    1 track rail
    2 trolleys
    4 (5) wall mounts
    2 door stoppers
    1 door bottom guide
    hanger bolts

    Biparting door:
    2 track rails + connector
    4 trolleys
    8 (10) wall mounts
    4 door stoppers
    2 door bottom guides
    hanger bolts

Technical Details

Area of application: Wooden doors
Assembly: Wall mounting
Door leaf thickness: 1-4/8" - 1-6/8" (38-45mm)
Initial friction: < 10NM
Material: Stainless steel (1.4301)
Number of door leaves: 1
Passage width, max.: 35-3/8" (900mm)
Passage width, min.: 29-4/8" (750mm)
Rail length: 70-7/8" (1800mm)
Series: Pandora
Standard: Factory test
Suitable for door width max.: 37-3/8" (950mm)
Suitable for door width min.: 31-4/8" (800mm)
Surface: Fine tuning
