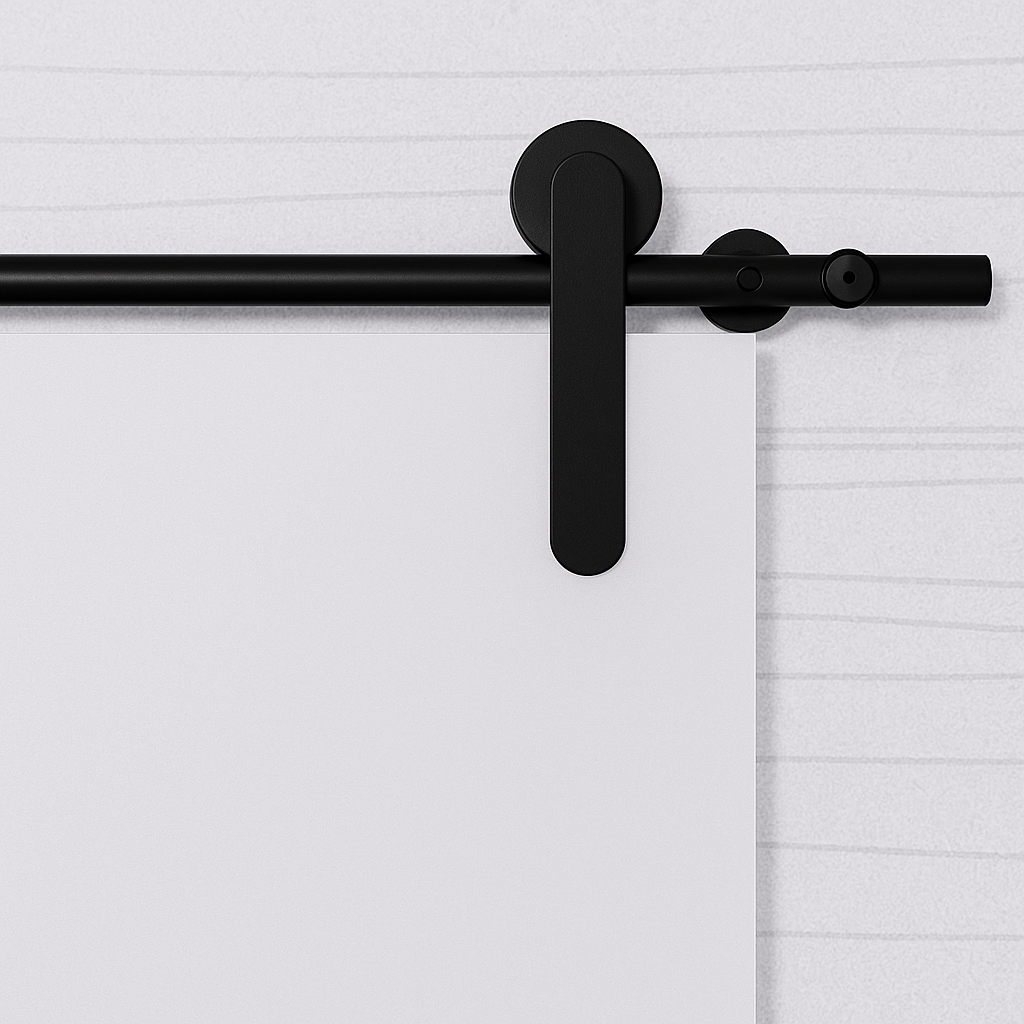

Sliding door hardware Pandora, wood, front-mounted

The Pandora sliding door hardware for wooden doors, front-mounted, is a premium sliding door system featuring low-profile trolleys with decorative covers and no visible screws. Unlike ceiling-mounted systems, the Pandora front-mounted variant allows installation directly on the wall face – ideal for situations where ceiling mounting is not possible or desired.

Available in five surface finishes – satin stainless steel, polished stainless steel, black powder coated, dark bronze, and matte gold (also known as satin brass or US4 finish) – the Pandora front-mounted adapts to a wide range of interior styles. The matte gold / satin brass finish is the standout option of the series, combining warm tones with precision stainless steel engineering.

Made from stainless steel (AISI 304L) with heavy duty polymer rollers and Click & Safe anti-jump device. Supports wooden door weights of up to 320 lbs (145 kg). Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2".

Product Information

Features
Single and biparting door sets
Click & Safe anti-jump device
Made from stainless steel (AISI304L)
Heavy duty polymer roller
Finish options: satin stainless steel, polished stainless steel, stainless steel powdered in black, dark bronze or mattgold
Benefits
Meets ANSI/BHMA A156.14-2013 grade 1 Internal test
Door thickness: 1-7/16" - 1-3/4" (38-45mm)
Initial friction < 10 NM
Maximum door weight: 320 lbs (145 kg)
Scope of Delivery
Single door:
1 track rail
2 trolleys
4 (5) wall mounts
2 door stoppers
1 door bottom guide
hanger bolts

Biparting door:
2 track rails + connector
4 trolleys
8 (10) wall mounts
4 door stoppers
2 door bottom guides
hanger bolts

Technical Details

The Pandora sliding door hardware for wooden doors, front-mounted, is a premium sliding door system featuring low-profile trolleys with decorative covers and no visible screws. Unlike ceiling-mounted systems, the Pandora front-mounted variant allows installation directly on the wall face – ideal for situations where ceiling mounting is not possible or desired.

Available in five surface finishes – satin stainless steel, polished stainless steel, black powder coated, dark bronze, and matte gold (also known as satin brass or US4 finish) – the Pandora front-mounted adapts to a wide range of interior styles. The matte gold / satin brass finish is the standout option of the series, combining warm tones with precision stainless steel engineering.

Made from stainless steel (AISI 304L) with heavy duty polymer rollers and Click & Safe anti-jump device. Supports wooden door weights of up to 320 lbs (145 kg). Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2".

Downloads

Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
