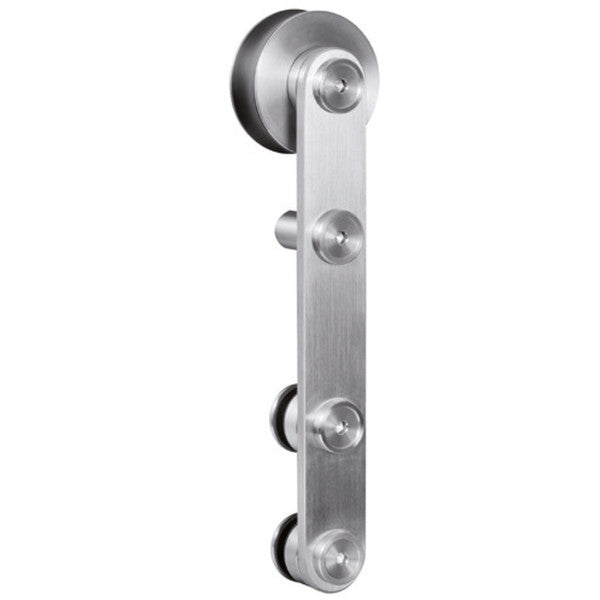

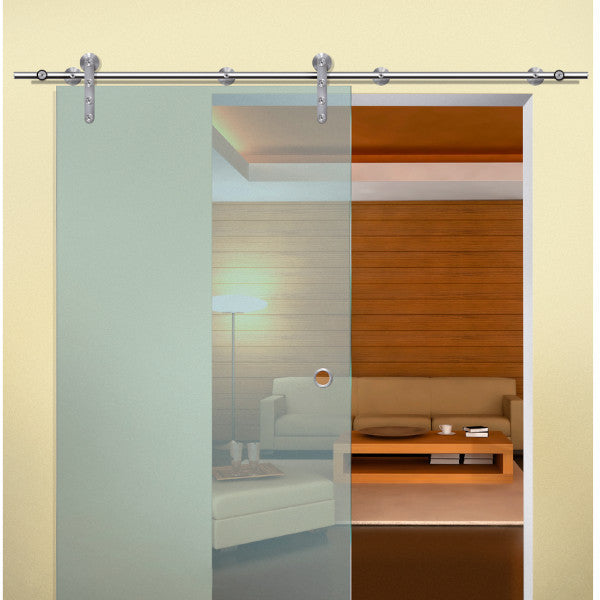

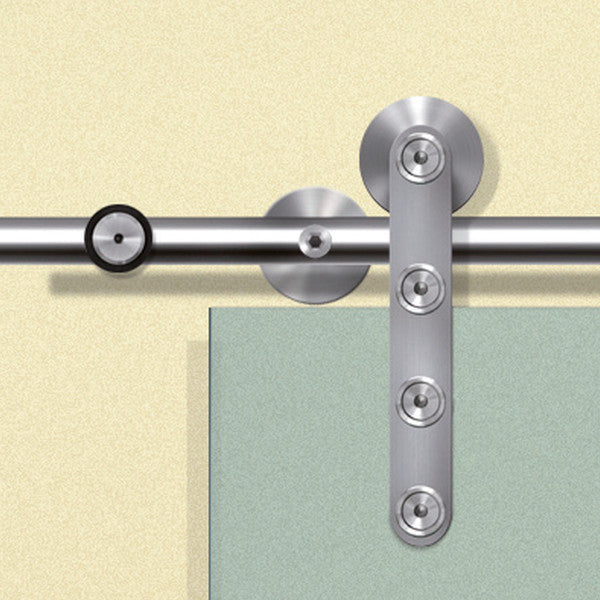

The Project barn door hardware for glass doors features a minimalist round-rail design in satin stainless steel, purpose-built for hospitality and commercial office environments. The system is designed without height adjustment – straightforward to install and built for consistent, reliable performance.
Made from stainless steel (AISI 304L) with heavy duty polymer rollers and an anti-jump device, the Project supports glass door weights of up to 320 lbs (145 kg) with a door thickness of 5/16" to 1/2", suitable for laminated safety glass (VSG) and toughened safety glass (ESG).
Available for single door configurations in four passage widths from 29-1/2" to 49-3/16". ANSI/BHMA A156.14-2013 Grade 1 certified by Intertek.
Application for hospitality and building offices
Single and biparting door sets
Anti-jump device
w/o height adjustment
Made from stainless steel (AISI304L)
Heavy duty polymer roller
Finish options: satin stainless steel
Benefits
ANSI/BHMA A156.14-2013 tested and certified grade 1 Intertek certification
Door thickness: 5/16“ – 1/2“
Initial friction <10 NM
Maximum door weight: 320 lbs (145 kg)
Area of application: Glass doors Assembly: Wall mounting Classification: | - | 6 | 2 | 0 | - | 4 | - | 1 | 3 | Door leaf thickness: 5/16" - 4/8" (8-12mm) Door width: 31-4/5" - 37-3/8" (800-950mm) Field of application: 1-leaf sliding doors Passage width: 29-1/2" - 35-7/16" (750-900mm) Series: Project Standard: Tested by Intertek according to ANSI/BHMA A156.14-2013
Downloads
Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
Spacer disk set for drywall
Spacer for glass doors D 9/16", L 3/4"
