Application for hospitality and building offices
Single and biparting door sets
Anti-jump device
w/o height adjustment
Made from stainless steel (AISI304L)
Heavy duty polymer roller
Finish options: satin stainless steel
Benefits
ANSI/BHMA A156.14-2013 tested and certified grade 1 Intertek certification
Door thickness: 1 7/16“-1 3/4“
Initial friction < 10 NM
Maximum door weight: 320 lbs (145 kg)
Scope of Delivery
1 track rail

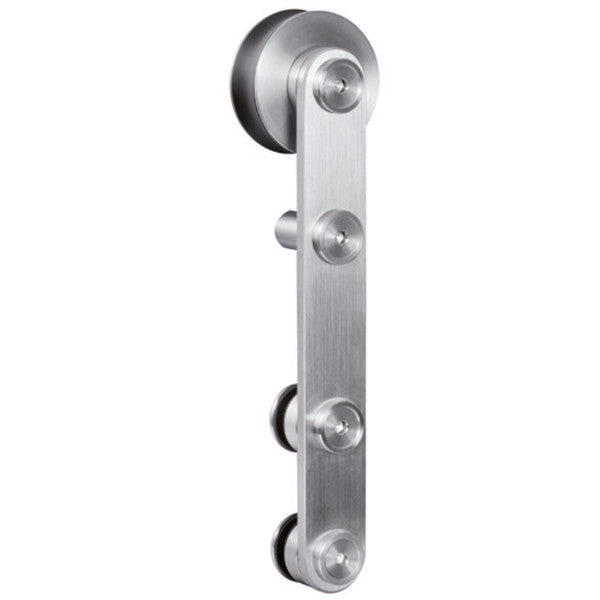

2 trolleys
4 (5) wall mounts
1 door bottom guide
2 door stoppers
hanger bolts
Technical Details
Area of application: Wooden doors Assembly: Wall mounting Classification: | - | 6 | 2 | 0 | - | 4 | - | 1 | 3 | Door leaf thickness: 1-3/8" - 1-3/4" (36-45mm) Door width: 31-4/5" - 37-3/8" (800-950mm) Field of application: 1-leaf sliding doors Passage width: 29-1/2" - 35-7/16" (750-900mm) Series: Project Standard: Tested by Intertek according to ANSI/BHMA A156.14-2013
