Sliding door hardware Runway, glass

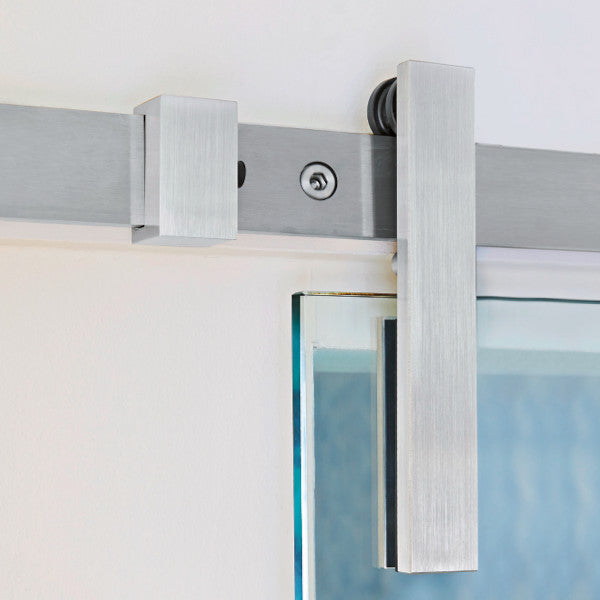

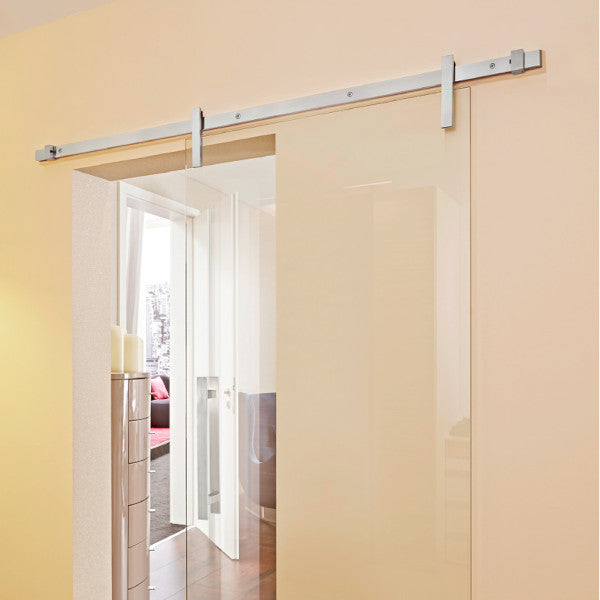

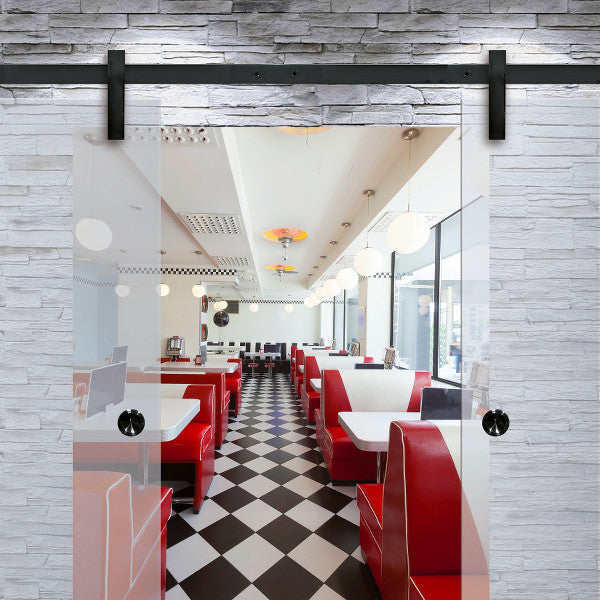

The Runway barn door hardware for glass doors features a modern and clean design with concealed rollers that make the carriage appear to glide invisibly along the track. The angular shape of the carriage and track reflects current interior design trends – ideal for minimalist and contemporary spaces with glass sliding doors.

Made from stainless steel (AISI 304L) with heavy duty polymer rollers and an anti-jump device, the Runway barn door hardware is available in satin stainless steel and black powder coated finish. Height adjustable wall mounts of ±1/8" ensure precise installation. Soft close is optionally available. Supports glass door weights of up to 176 lbs (80 kg) with a door thickness of 5/16" to 1/2", suitable for laminated safety glass (VSG) and toughened safety glass (ESG).

Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". ANSI/BHMA A156.14-2013 Grade 1 internal test certified.

Product Information

Features
Single and biparting door sets
Anti-jump device
Made from stainless steel (AISI304L)
Heavy duty polymer roller

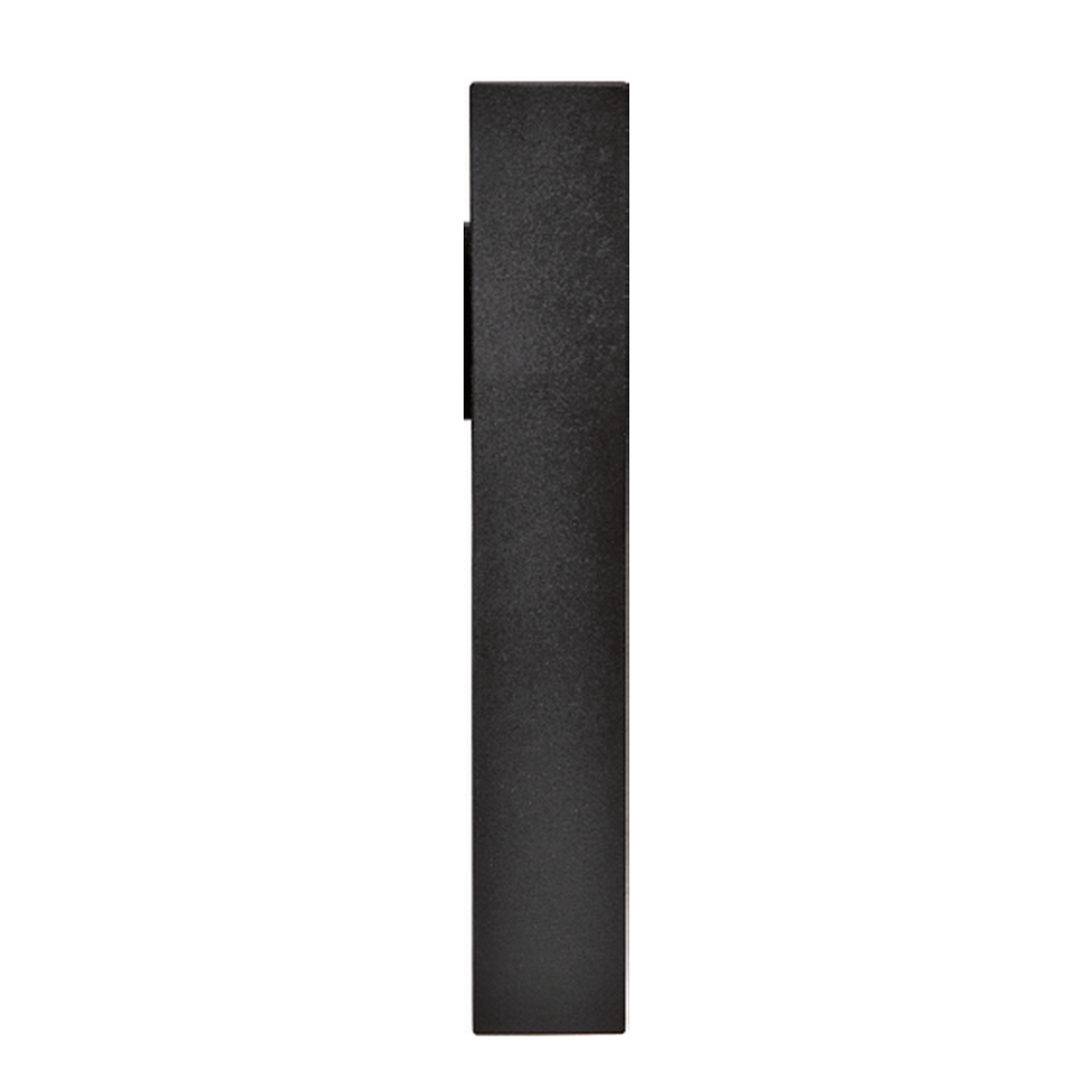

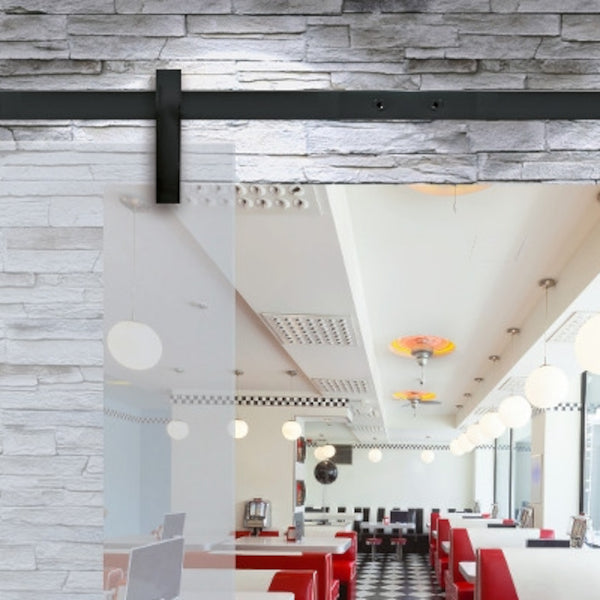

Finish options: satin stainless steel, aluminum black powdered
Benefits
Match ANSI/BHMA A156.14-2013 Grade 1
Internal test
Door thickness: 5/16"–1/2"
Initial friction < 10 NM
Maximum door weight: 176 lbs (80 kg)
Height adjustable wall mounts (± 1/8")
Scope of Delivery
Single door:
1 track rail

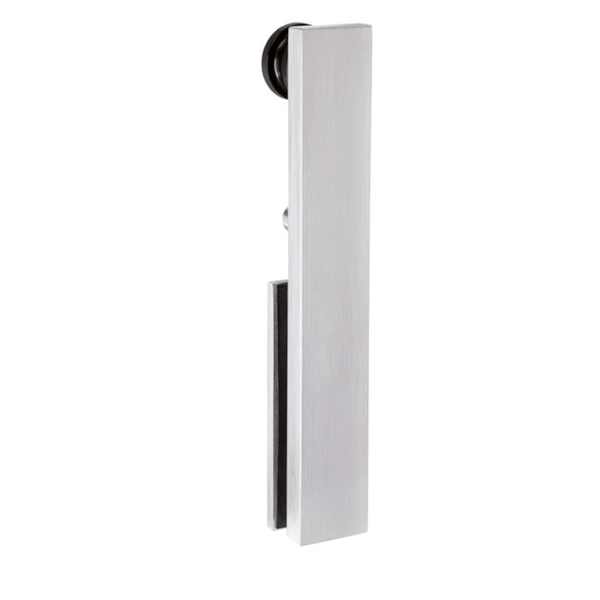

2 trolleys
3 (4) wall mounts
2 door stoppers
1 door bottom guide
Installation screws

Biparting door:
2 track rails + connector
4 trolleys
6 (8) wall mounts
4 door stoppers
2 door bottom guides
1 double door stopper
Installation screws

Technical Details

Area of application: Glass doors
Assembly: Wall mounting
Damping: Soft close optionally available
Door leaf thickness: 5/16" - 4/8" (8-12mm)
Initial friction: < 10NM
Material: Stainless steel (1.4301)
Number of door leaves: 1
Passage width, max.: 35-3/8" (900mm)
Passage width, min.: 29-4/8" (750mm)
Rail length: 70-7/8" (1800mm)
Series: Runway
Setting options: height adjustable ± 1/8" (3mm)
Standard: Factory test
Suitable for door width max.: 37-3/8" (950mm)
Suitable for door width min.: 31-4/8" (800mm)
Type of glass: Laminated safety glass (VSG), Toughened safety glass (ESG)
Surface: Fine tuning

Downloads

Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
