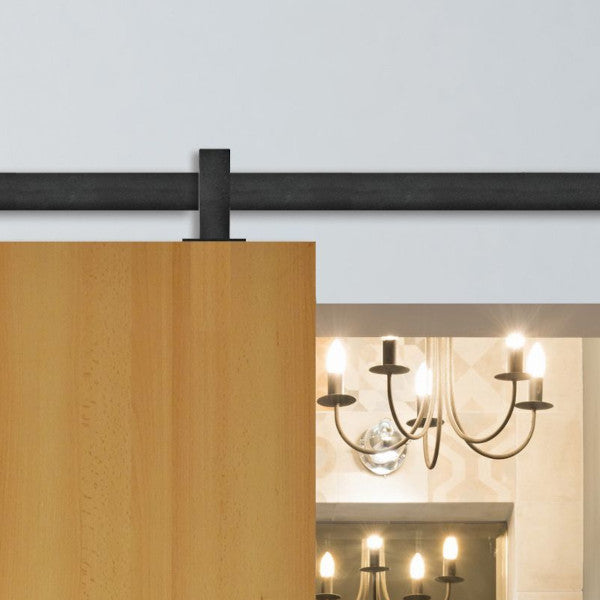

Sliding door hardware Runway, wood

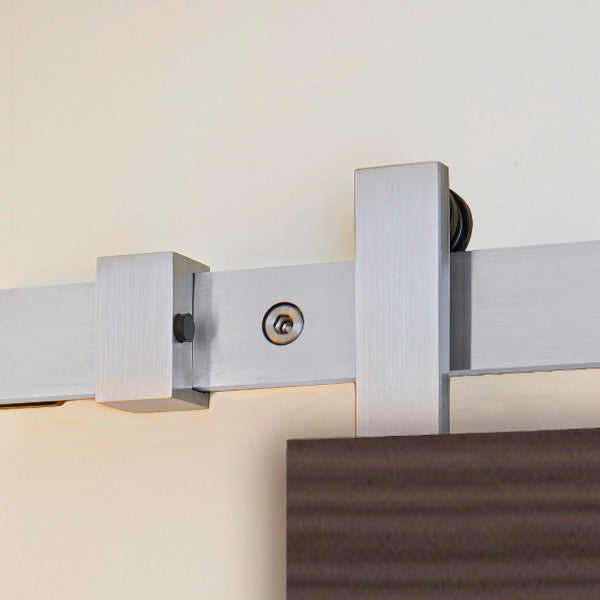

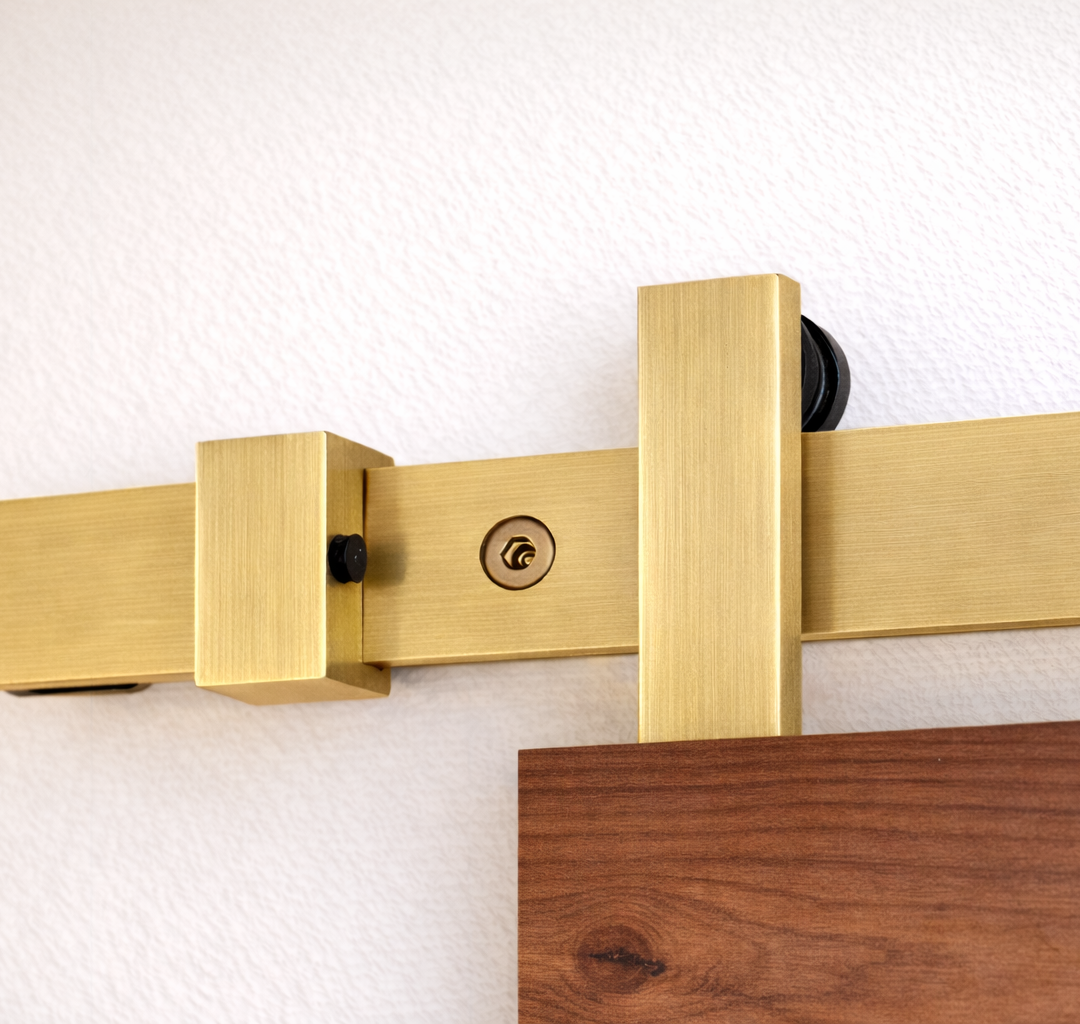

The Runway barn door hardware for wooden doors features a modern, angular design with concealed rollers that make the carriage appear to glide invisibly along the track. The clean geometric shape of the carriage and rail reflects current interior design trends – ideal for minimalist and contemporary spaces.

Made from stainless steel (AISI 304L) with heavy duty polymer rollers and an anti-jump device, the Runway barn door hardware is available in satin stainless steel and black powder coated finish. Height adjustable wall mounts of ±1/8" ensure precise installation. Soft close is optionally available. Supports wooden door weights of up to 176 lbs (80 kg) with a door thickness of 1-7/16" to 1-3/4".

Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". ANSI/BHMA A156.14-2013 Grade 1 internal test certified.

Product Information

Features
Single and biparting door sets
Anti-jump device
Made from stainless steel (AISI304L)
Heavy duty polymer roller

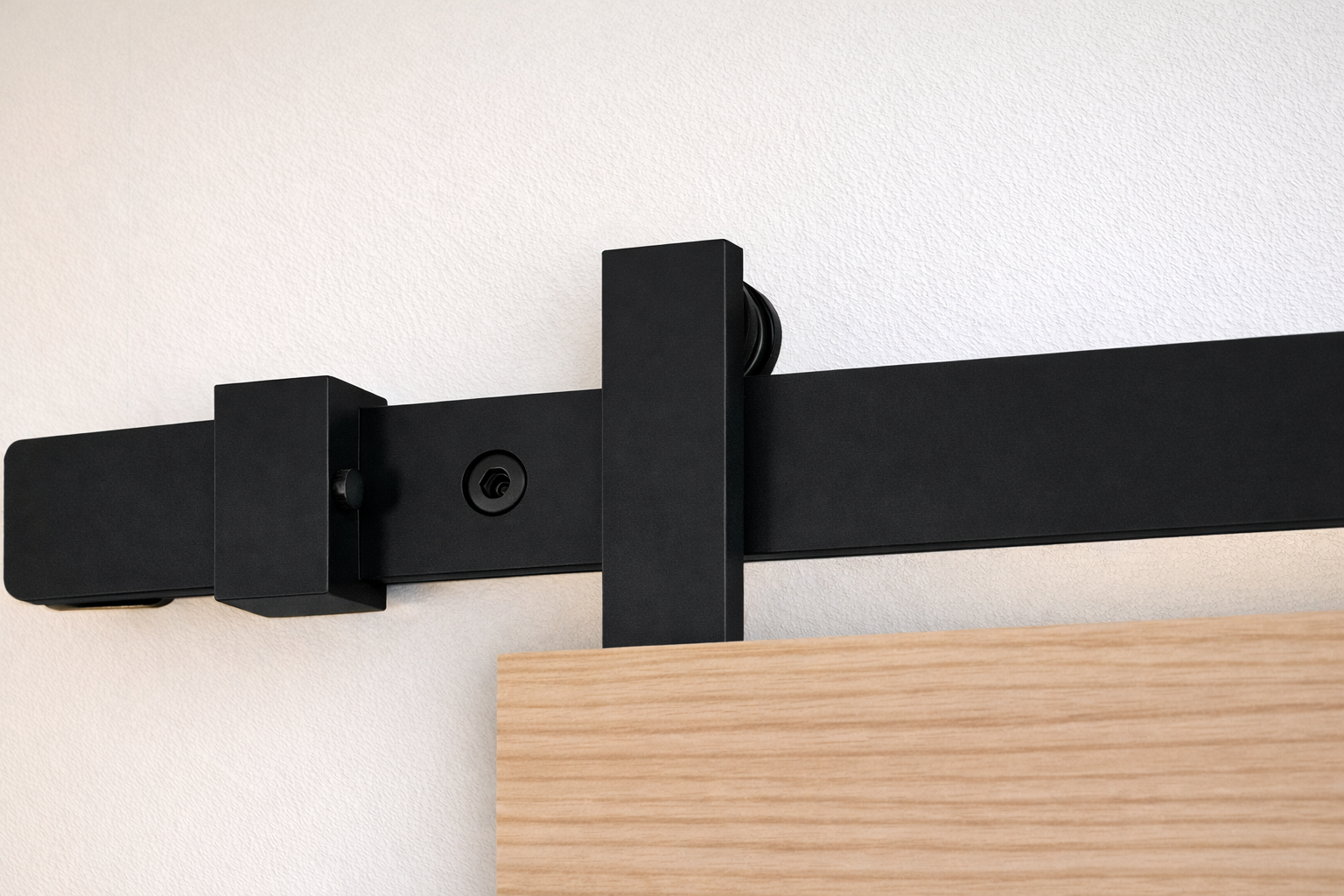

Finish options: satin stainless steel, aluminum black powdered
Benefits
Match ANSI/BHMA A156.14-2013 Grade 1 internal test
Door thickness: 1 7/16” – 1 3/4”
Initial friction < 10 NM Maximum
Door weight: 176 lbs (80 kg)
Height adjustable wall mounts ± 1/8”
Scope of Delivery
Single door:
1 track rail

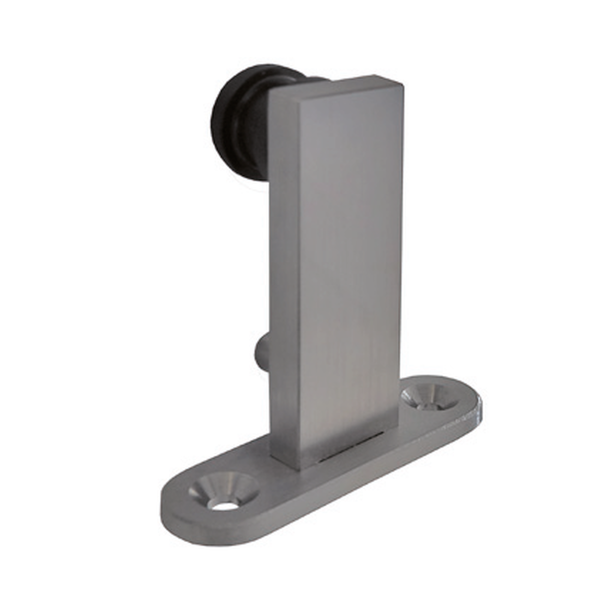

2 trolleys
3 (4) wall mounts
2 door stoppers
1 door bottom guide
1 Allen key (SW5)
Installation screws

Biparting door:
2 track rails + connector
4 trolleys
6 (8) wall mounts
4 door stoppers
2 door bottom guides
1 Allen key (SW5)
Installation screws

Technical Details

Area of application: Wooden doors
Assembly: Wall mounting
Damping: Soft close optionally available

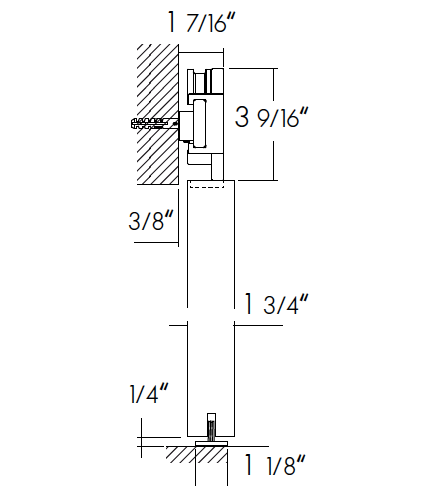

Door leaf thickness: 1-4/8" - 1-6/8" (38-45mm)
Initial friction: < 10NM
Material: Stainless steel (1.4301)
Number of door leaves: 1
Passage width, max.: 35-3/8" (900mm)
Passage width, min.: 29-4/8" (750mm)
Rail length: 70-7/8" (1800mm)
Series: Runway
Setting options: height adjustable ± 1/8" (3mm)
Standard: Factory test
Suitable for door width max.: 37-3/8" (950mm)
Suitable for door width min.: 31-4/8" (800mm)
Surface: Fine tuning
