Sliding door hardware Skater, wood

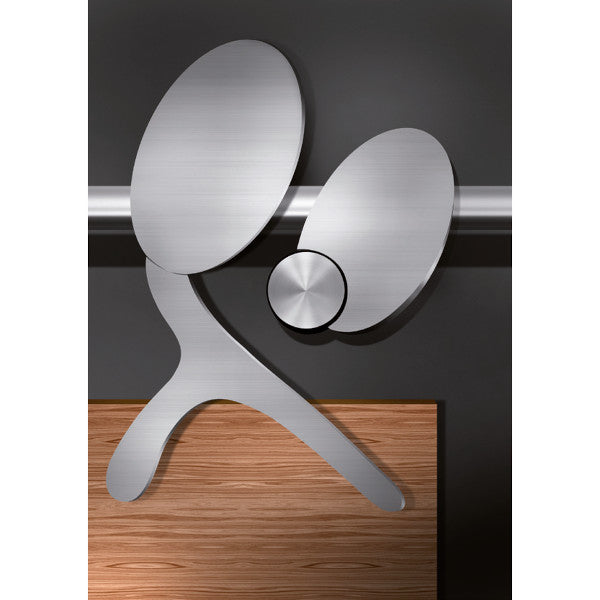

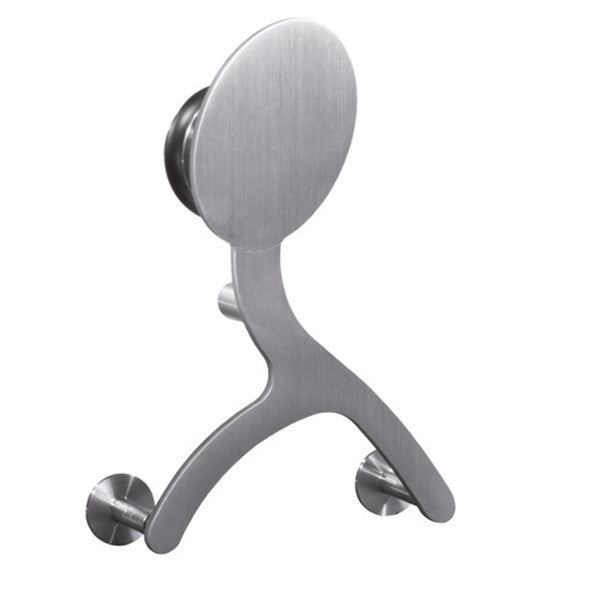

The Skater barn door hardware for wooden doors is defined by its striking, sculptural trolley design – a visual statement that stands out in any interior. The organic, figure-like shape of the carriage makes the hardware itself a design element, ideal for architecture-driven residential and commercial spaces.

Made from stainless steel (AISI 304L) with heavy duty polymer rollers and an anti-jump device, the Skater barn door hardware delivers smooth and quiet operation while supporting door weights of up to 320 lbs (145 kg). Door thickness from 1-7/16" to 1-3/4" is supported. Initial friction is less than 10 NM for effortless gliding. Assembly is wall-mounted.

Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". Finish: satin stainless steel. ANSI/BHMA A156.14-2013 Grade 1 Intertek certified.

1 6

Surface Satin stainless steel

Passage width 29-1/2" - 35-7/16" (750-900mm) 35-13/16" - 39-3/8" (910-1000mm) 39-3/4" - 44-1/16" (1010-1120mm) 44-1/2" - 49-3/16" (1130-1250mm) 59" - 70-7/8" (1500-1800mm) 79" - 94-1/2" (2000-2400mm)

Number of door leaves 1 2

SKU:

SKU:USU92-1800EF

$2,559.00 USD

Sale Sold out

Shipping calculated at checkout.

View full details

Product Information

Features
Single and biparting door sets
Anti-jump device
Solid track rail for smooth and quiet operation
Made from stainless steel (AISI304L)
Heavy duty polymer roller

Finish options: satin stainless steel
Benefits
ANSI/BHMA A156.14-2013 tested and certified grade 1 Intertek certification
Door thickness: 1 7/16“ - 1 3/4“
Initial friction < 10 NM
Maximum door weight: 320 lbs (145 kg)
Scope of Delivery
Single door:
1 track rail
2 trolleys
3 (4) wall mounts
1 door bottom guide
2 door stoppers
hanger bolts

Biparting door:
2 track rails + connector
4 trolleys
7 (9) wall mounts
4 Doorstoppers
2 door bottom guides
hanger bolts

Technical Details

Area of application: Wooden doors
Assembly: Wall mounting
Door leaf thickness: 1-3/8" - 1-3/4" (36-45mm)
Door width: 31-4/5" - 37-3/8" (800-950mm)
Field of application: 1-leaf sliding doors
Passage width: 29-1/2" - 35-7/16" (750-900mm)
Series: Skater
