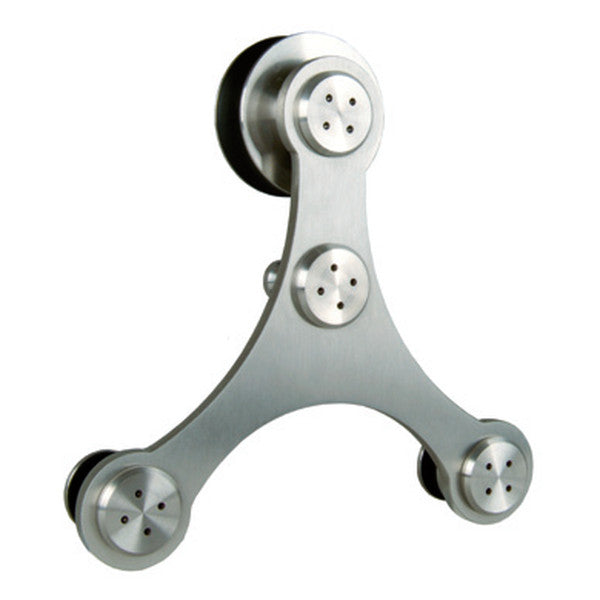

The Tritec barn door hardware for glass doors stands out with its sculpted roller carriage design – the exposed mechanical form highlights precision engineering while delivering exceptionally smooth, quiet, and controlled movement. A distinctive choice for modern interiors where the hardware itself becomes a design element.
Made from stainless steel (AISI 304L) with heavy duty polymer rollers and an anti-jump device, the Tritec includes soft-close (Soft-Tec) as standard. Height adjustable wall mounts of ±1/8" ensure precise installation. Supports glass door weights of up to 320 lbs (145 kg) with a door thickness of 5/16" to 1/2", suitable for laminated safety glass (VSG) and toughened safety glass (ESG).
Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". ANSI/BHMA A156.14-2013 Grade 1 certified by Intertek.
Single and biparting door sets
Anti-jump device
Solid track rail for smooth and quiet operation
Made from stainless steel (AISI304L)
Heavy duty polymer roller
Finish options: satin stainless steel
Benefits
ANSI/BHMA A156.14-2013 tested and certified grade 1 Intertek certification
Door thickness: 5/16“ – 1/2“
Initial friction < 10 NM
Maximum door weight: 320 lbs (145 kg)
Height adjustment ± 1/8”
Including softstop Soft-Tec
Scope of Delivery
Single door:
1 track rail
2 trolleys
3 (4) wall mounts
1 door bottom guide
2 softstops Soft-Tec
hanger bolts
Area of application: Glass doors Assembly: Wall mounting Classification: | - | 6 | 2 | 0 | - | 4 | - | 1 | 3 | Door leaf thickness: 5/16" - 4/8" (8-12mm) Door width: 31-4/5" - 37-3/8" (800-950mm) Field of application: 1-leaf sliding doors Passage width: 29-1/2" - 35-7/16" (750-900mm) Series: Tritec Setting options: height adjustable ± 1/8" (3mm) Standard: Tested by Intertek according to ANSI/BHMA A156.14-2013
Downloads
Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
Spacer disk set for drywall
Spacer for glass doors D 9/16", L 3/4"
Impero pull handle 1"
