The Unotec Home barn door hardware for glass doors features a minimalist round-rail design with a solid track rail for smooth and quiet operation. The clean, understated aesthetic suits both residential and demanding architectural applications.
Made from stainless steel (AISI 304L) with heavy duty polymer rollers and an anti-jump device, the Unotec Home includes soft-close (Soft-Tec) as standard. Supports glass door weights of up to 320 lbs (145 kg) with a door thickness of 5/16" to 1/2", suitable for laminated safety glass (VSG) and toughened safety glass (ESG).
Available for single and biparting door configurations in six passage widths from 29-1/2" to 94-1/2". ANSI/BHMA A156.14-2013 Grade 1 certified by Intertek.
Single and biparting door sets
Anti-jump device
Solid track rail for smooth and quiet operation
Made from stainless steel (AISI304L)
Heavy duty polymer roller
Finish options: satin stainless steel
Benefits
ANSI/BHMA A156.14-2013 tested and certified grade 1 Intertek certification
Door thickness: 5/16“ – 1/2“
Initial friction < 10 NM
Maximum door weight: 320 lbs (145 kg)
Including softstop Soft-Tec
Scope of Delivery
Single door:
1 track rail

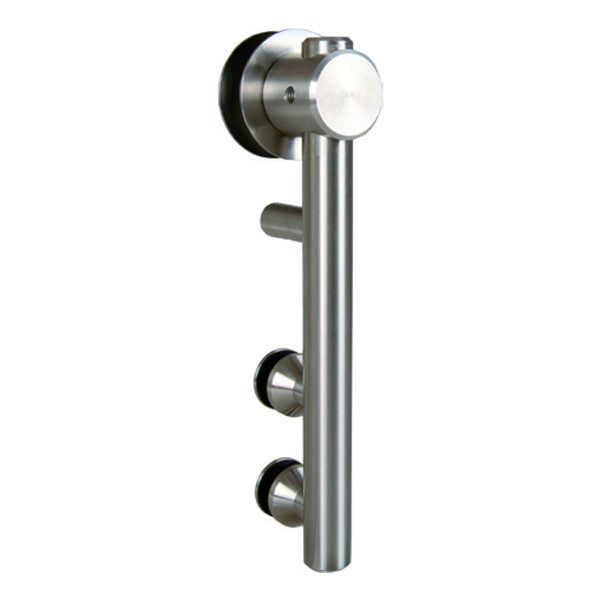

2 trolleys
3 (4) wall mounts
1 door bottom guide
2 softstops Soft-Tec
hanger bolts
Area of application: Glass doors Assembly: Wall mounting Classification: | - | 6 | 2 | 0 | - | 4 | - | 1 | 3 | Door leaf thickness: 5/16" - 4/8" (8-12mm) Door width: 31-4/5" - 37-3/8" (800-950mm) Field of application: 1-leaf sliding doors Passage width: 29-1/2" - 35-7/16" (750-900mm) Series: Unotec Home Standard: Tested by Intertek according to ANSI/BHMA A156.14-2013
Downloads
Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
Soft Tec damper set for Unotec Home and Tritec
Spacer for glass doors D 9/16", L 3/4"
Spacer disk set for drywall
Impero pull handle 1"
