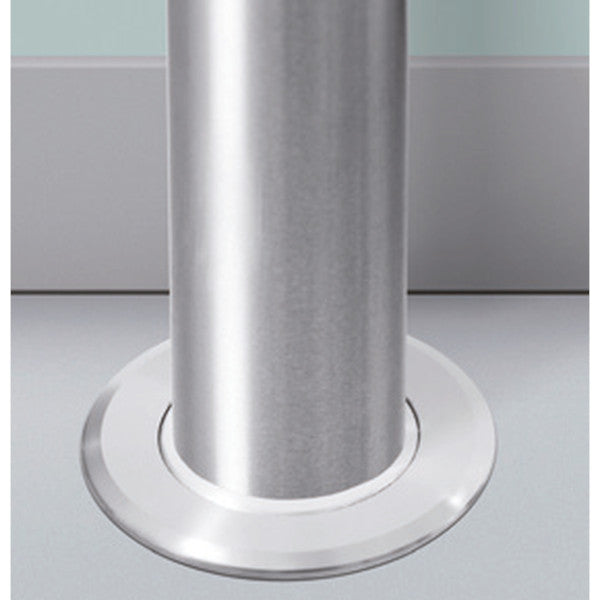

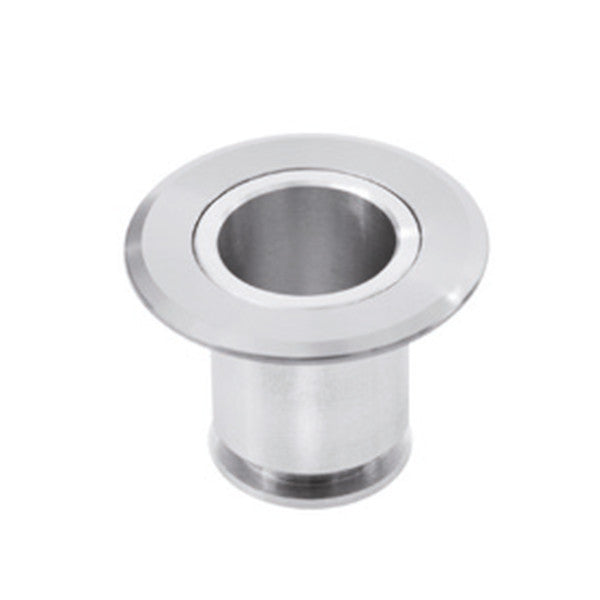

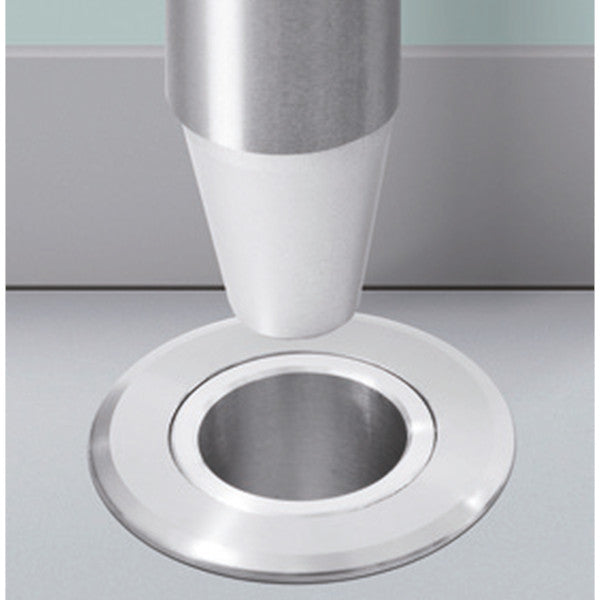

The strike for 7/8" bolt is a floor-mounted strike plate designed for use with locking ladder pulls equipped with a 7/8" (22mm) floor bolt. The conical sleeve guides the bolt reliably into the recess and ensures a secure locking position.
Made from satin stainless steel (AISI 303) with an aluminum insert. Dimensions: D = 1 3/4" (45mm), d = 1 1/4" (32mm), T = 1 5/8" (40mm). Required drill hole: ø 1 3/18" x 1 3/4" (36 x 45mm). The strike plate sits flush with the floor surface for a clean, unobtrusive finish. Sold individually (1 pc.).

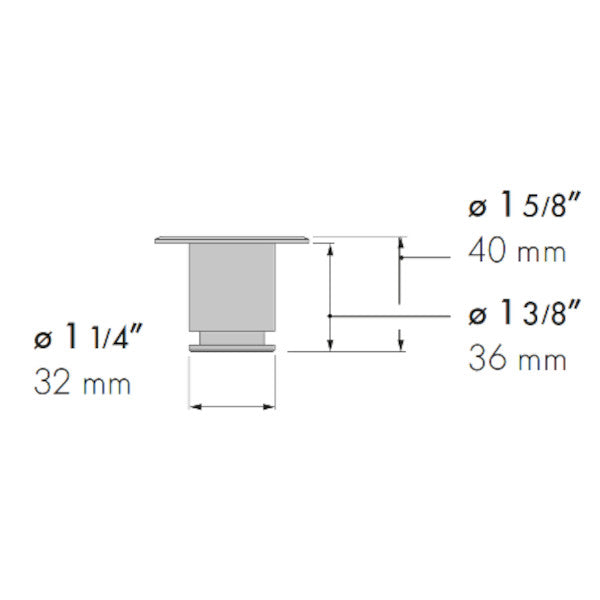

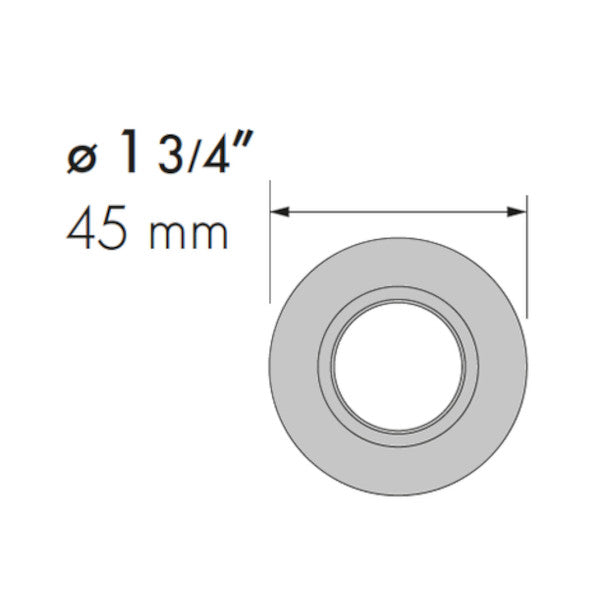

⌀ 1 3/4", d 1 1/4", T 1 5/8"
drill hole ø 1 3/18" x 1 3/4"
material: satin stainless steel (AISI 303)
aluminum
Benefits
Scope of Delivery
1 pc.
Technical Details
The strike for 7/8" bolt is a floor-mounted strike plate designed for use with locking ladder pulls equipped with a 7/8" (22mm) floor bolt. The conical sleeve guides the bolt reliably into the recess and ensures a secure locking position.
Made from satin stainless steel (AISI 303) with an aluminum insert. Dimensions: D = 1 3/4" (45mm), d = 1 1/4" (32mm), T = 1 5/8" (40mm). Required drill hole: ø 1 3/18" x 1 3/4" (36 x 45mm). The strike plate sits flush with the floor surface for a clean, unobtrusive finish. Sold individually (1 pc.).
