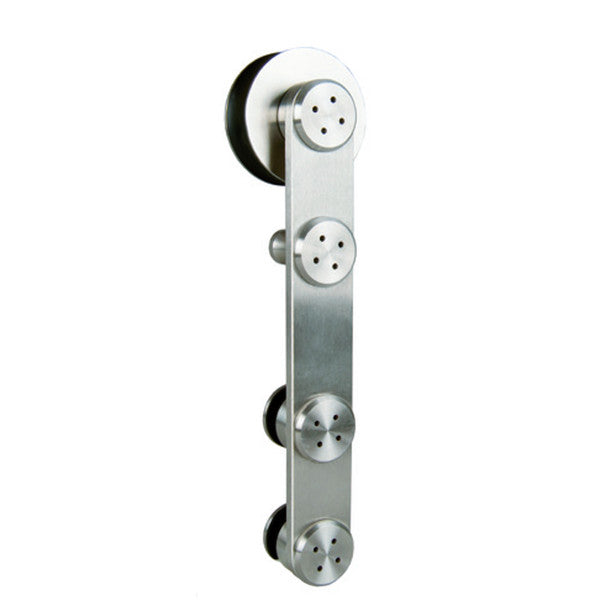

The Flatec I trolley is a four-wheel barn door hardware carriage with a slim, flat bracket profile. The four individual roller wheels distributed along the bracket ensure stable, smooth operation and even load distribution on the track rail.
Compatible with glass doors of thickness 5/16" – 1/2" (8–12 mm). Height adjustable ± 1/8" (3.5 mm). Maximum door weight 320 lbs (145 kg) per pair. Glass drill holes ø 1/2" (12 mm + 0.3 mm). Material: satin stainless steel (AISI 304L). Sold individually (1 pc.).
adjustable height approx. ± 1/8“ (3,5mm)
satin stainless steel (AISI304L)
maximum door weight 320 lbs (145 kg) per pair
glass drill holes ø 1/2“ (12mm + 0,3mm)
Benefits
Scope of Delivery
1 pc.
Technical Details
for glass doors t = 5/16“ – 1/2“ (8-12mm) adjustable height approx. ± 1/8“ (3,5mm) satin stainless steel (AISI304L) maximum door weight 320 lbs (145 kg) per pair glass drill holes ø 1/2“ (12mm + 0,3mm)
Downloads
Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
