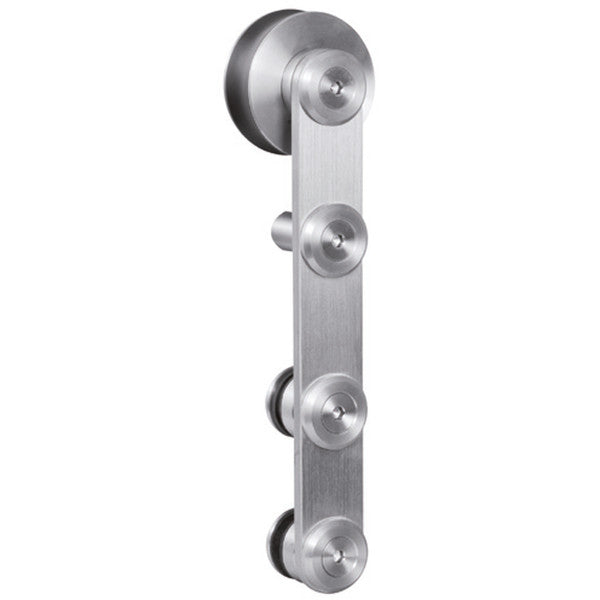

The barn door hardware trolley Flatec IV is the rolling carriage for the Flatec IV sliding door system, suitable for both glass and wooden sliding doors. The height-adjustable design allows precise alignment of the door panel after installation.
Made from satin stainless steel, also available in polished stainless steel. For glass doors: thickness 5/16"–1/2" (8–12mm), glass drill holes ø 1/2" + 1/64" (12 + 0.3mm). Height adjustable ±1/64" (3.5mm). Maximum door weight 320 lbs (145 kg) per pair. Sold individually (1 pc.).
for glass doors t = 5/16“ - 1/2“ (8-12mm) adjustable height approx. ± 1/64“ (3,5mm) maximum door weight 320 lbs (145 kg) (per pair) glass drill holes ø 1/2“ + 1/64“ (12 + 0,3mm) satin stainless steel
Downloads
Access all your product documents quickly and easily. Find datasheets, drawings, and technical files for each product – ready to download in PDF, DWG, DXF, and other formats.
