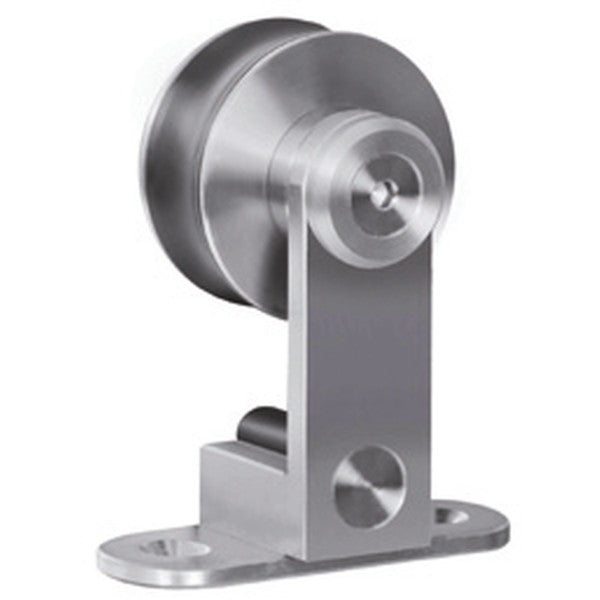

The barn door hardware trolley Flatec V is the rolling carriage for the Flatec V sliding door system, designed for wooden doors. The trolley runs on the track rail and carries the door panel, delivering smooth and quiet operation.
Made from satin stainless steel (AISI 304L). Suitable for wooden door thicknesses of 1-7/16"–1-3/4" (38–45mm). Maximum door weight 320 lbs (145 kg) per pair. Wood drill holes diameter ø 3/8" + 1/64 (10mm + 0.3mm). Sold individually (1 pc.).
for wooden doors for wooden doors 1 7/16" - 1 3/4" (38mm - 45mm)
satin stainless steel (AISI304L)
Maximum door weight 320 lbs (145 kg) (per pair)
Wood drill holes diameter ø 3/8“ + 1/64 (10mm + 0,3mm)
Benefits
Scope of Delivery
1 pc.
Technical Details
The barn door hardware trolley Flatec V is the rolling carriage for the Flatec V sliding door system, designed for wooden doors. The trolley runs on the track rail and carries the door panel, delivering smooth and quiet operation.
Made from satin stainless steel (AISI 304L). Suitable for wooden door thicknesses of 1-7/16"–1-3/4" (38–45mm). Maximum door weight 320 lbs (145 kg) per pair. Wood drill holes diameter ø 3/8" + 1/64 (10mm + 0.3mm). Sold individually (1 pc.).
